Intake Air Temperature (IAT) Sensor Inspection
NOTE:
- The MAF sensor and IAT sensor cannot be removed as a single unit. When replacing the MAF sensor or IAT sensor, replace it together with the MAF/IAT sensor as a single unit.
- Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION .)
- Disconnect the MAF/IAT sensor connector.

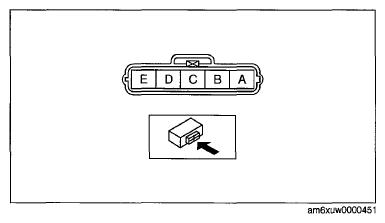

- Measure the resistance between MAF/IAT sensor terminals D and E.
- If not as specified, replace the MAF/IAT sensor. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION .)
IAT SENSOR SPECIFICATIONAmbient temperature (°C {°F}) Resistance (kilohm) -20 {-4} 13.6-18.4 20 {68} 2.21-2.69 60 {140} 0.493-0.667
