Knock Sensor (KS) Removal/Installation

  1. Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION .)
  2. Remove the plug hole plate. (See PLUG HOLE PLATE REMOVAL/INSTALLATION .)
  3. Remove the intake manifold. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION .)
  4. Disconnect the KS connector.
  5. Remove the KS.
  6. Install in the reverse order of removal.

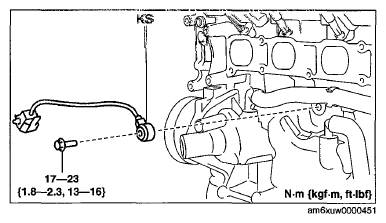

Fig 1: Knock Sensor And Bolt With Torque Specifications
G07620742Courtesy of MAZDA MOTORS CORP.
