CKP sensor signal

PCM terminals

• 2W(+)-body ground(-)

Oscilloscope setting

• 1 V/DIV (Y), 5 ms/DIV (X), DC range

Vehicle condition

• Idle (after warm up)

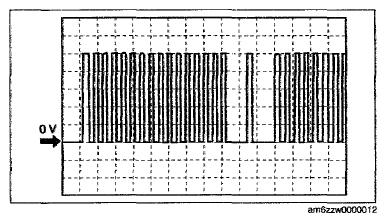

Fig 1: Display CKP Sensor Signal

Courtesy of MAZDA MOTORS CORP.
