CMP sensor signal

PCM terminals

• 2S(+)-body ground(-)

Oscilloscope setting

• 1 V/DIV (Y), 25 ms/DIV (X), DC range

Vehicle condition

• Idle (after warm up)

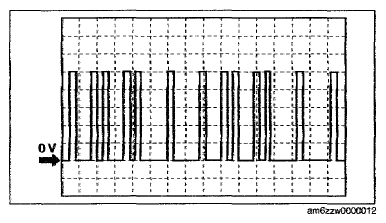

Fig 1: Display CMP Sensor Signal

Courtesy of MAZDA MOTORS CORP.
