OCV control signal

PCM terminals

• 2E(+)-body ground(-)

Oscilloscope setting

• 2 V/DIV (Y), 0.8 ms/DIV (X), DC range

Vehicle condition

• Idle (after warm up)

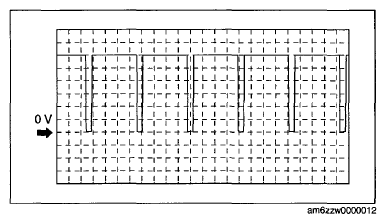

Fig 1: Display OCV Control Signal

Courtesy of MAZDA MOTORS CORP.
