Control System Location Index

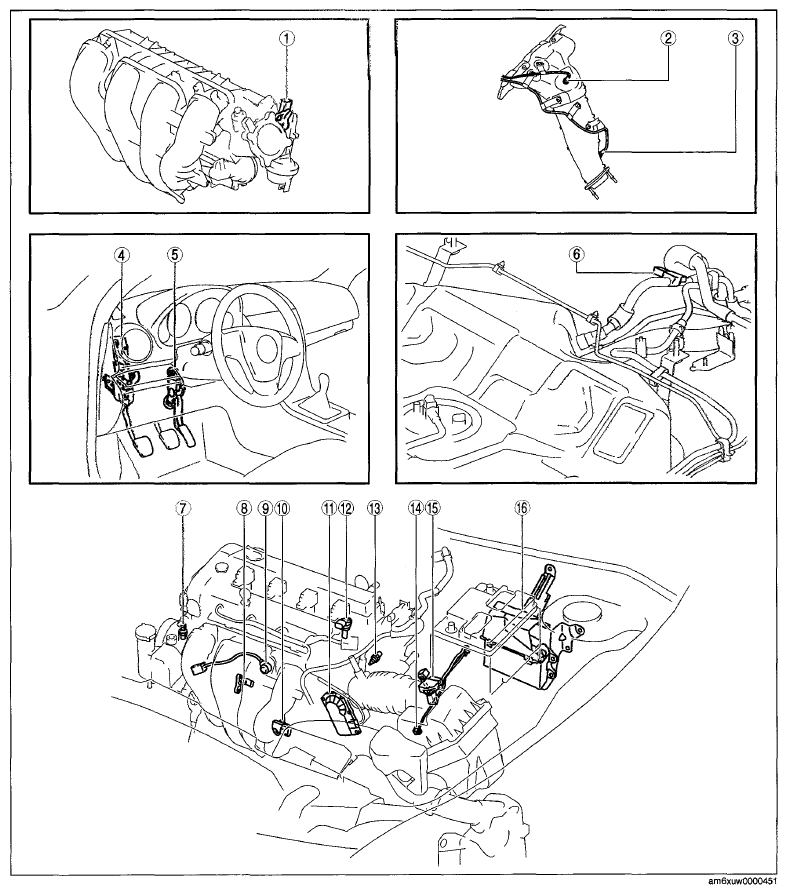

Fig 1: Control System Sensors Location

Courtesy of MAZDA MOTORS CORP.

CONTROL SYSTEM LOCATION INDEX

1	Variable tumble shutter valve position sensor (See VARIABLE TUMBLE SHUTTER VALVE POSITION SENSOR INSPECTION .) (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION .)
2	A/F sensor (See AIR FUEL RATIO (A/F) SENSOR REMOVAL/INSTALLATION .) (See AIR FUEL RATIO (A/F) SENSOR INSPECTION .)
3	HO2S (See HEATED OXYGEN SENSOR (HO2S) REMOVAL/INSTALLATION .) (See HEATED OXYGEN SENSOR (HO2S) INSPECTION .)
4	CPP switch (MTX) (See CLUTCH PEDAL POSITION (CPP) SWITCH INSPECTION .) (See CLUTCH PEDAL REMOVAL/INSTALLATION [G66M-R] .)
5	APP sensor (See ACCELERATOR PEDAL POSITION (APP) SENSOR INSPECTION .) (See ACCELERATOR PEDAL REMOVAL/INSTALLATION .)
6	Fuel tank pressure sensor (See FUEL TANK PRESSURE SENSOR INSPECTION .) (See FUEL TANK REMOVAL/INSTALLATION .)
7	PSP switch (See POWER STEERING PRESSURE (PSP) SWITCH INSPECTION .) (See POWER STEERING OIL PUMP DISASSEMBLY/ASSEMBLY .)
8	CKP sensor (See CRANKSHAFT POSITION (CKP) SENSOR REMOVAL/INSTALLATION .) (See CRANKSHAFT POSITION (CKP) SENSOR INSPECTION .)
9	KS (See KNOCK SENSOR (KS) REMOVAL/INSTALLATION .) (See KNOCK SENSOR (KS) INSPECTION .)
10	MAP sensor (See MANIFOLD ABSOLUTE PRESSURE (MAP) SENSOR REMOVAL/INSTALLATION .) (See MANIFOLD ABSOLUTE PRESSURE (MAP) SENSOR INSPECTION .)
11	TP sensor (See THROTTLE POSITION (TP) SENSOR INSPECTION .) (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION .)
12	CMP sensor (See CAMSHAFT POSITION (CMP) SENSOR REMOVAL/INSTALLATION .) (See CAMSHAFT POSITION (CMP) SENSOR INSPECTION .)
13	ECT sensor (See ENGINE COOLANT TEMPERATURE (ECT) SENSOR REMOVAL/INSTALLATION .) (See ENGINE COOLANT TEMPERATURE (ECT) SENSOR INSPECTION .)
14	Neutral switch (MTX) (See NEUTRAL SWITCH INSPECTION .) (See NEUTRAL SWITCH REMOVAL/INSTALLATION [G66M-R] .)
15	MAF/IAT sensor (See MASS AIR FLOW (MAF) SENSOR INSPECTION .) (See INTAKE AIR TEMPERATURE (IAT) SENSOR INSPECTION .) (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION .)
16	PCM (BARO sensor) (See PCM REMOVAL/INSTALLATION .) (See PCM INSPECTION .) (See PCM CONFIGURATION .) (See BAROMETRIC PRESSURE (BARO) SENSOR REMOVAL/INSTALLATION .) (See BAROMETRIC PRESSURE (BARO) SENSOR INSPECTION .)
