Neutral Switch Inspection

  1. Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION .)
  2. Disconnect the neutral switch connector. (See NEUTRAL SWITCH REMOVAL/INSTALLATION [G66M-R] .)
  3. Remove the neutral switch. (See NEUTRAL SWITCH REMOVAL/INSTALLATION [G66M-R] .)
  4. Inspect for continuity between neutral switch terminals A and B.
    NEUTRAL SWITCH SPECIFICATION

    Measured condition Continuity
    Rod pushed Continuity detected
    Except above No continuity

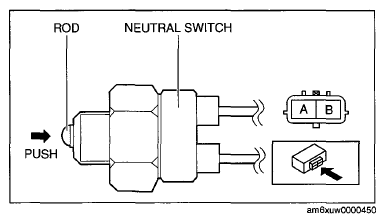

    Fig 1: Neutral Switch Terminals
    G07620718Courtesy of MAZDA MOTORS CORP.
