Generated pulse (reference)
>>
Pattern 1
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Pattern 1
Terminal: 8G (+) ↔ body ground (-)
Oscilloscope setting: 2 V/DIV (Y), 1 ms/DIV (X), DC range

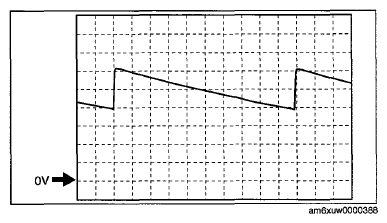

Fig 1: Voltage Signal Pattern 1
Courtesy of MAZDA MOTORS CORP.
