Pattern 4
Courtesy of MAZDA MOTORS CORP.
- Terminal:
- Interior light control: 6M (+) ↔ body ground (-)
- Courtesy light control: 6O (+) ↔ body ground (-)
- Trunk room light control: 7B (+) ↔ body ground (-)

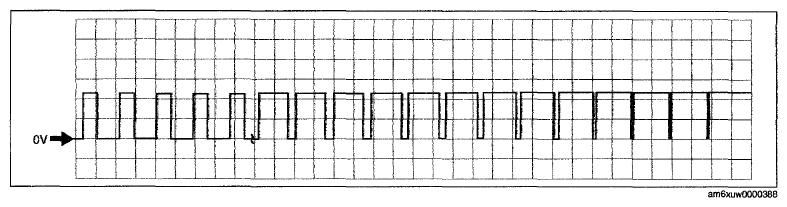

- Oscilloscope setting: 5 V/DIV (Y), 5 ms/DIV (X), DC range
