Control System Location Index

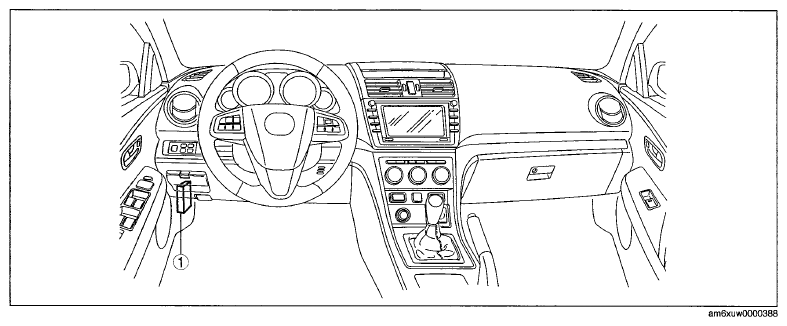

Fig 1: Control System Components Location

Courtesy of MAZDA MOTORS CORP.

CONTROL SYSTEM LOCATION INDEX

1	BCM (See BODY CONTROL MODULE (BCM) REMOVAL/INSTALLATION .) (See BODY CONTROL MODULE (BCM) INSPECTION .) (See BODY CONTROL MODULE (BCM) CONFIGURATION .) (See CONTROL SYSTEM PERSONALIZATION FEATURES SETTING PROCEDURE .)
