Brake Pipe Installation Note

Align the marks made before removal and install the brake pipe into the DSC HU/CM referring to the illustration.

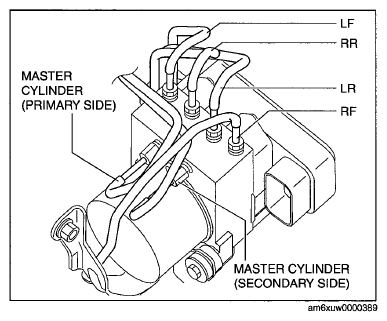

Fig 1: Brake Pipes With Master Cylinder (Primary Side And Secondary Side)

Courtesy of MAZDA MOTORS CORP.
