DSC HU/CM Installation Note

1. Install the DSC HU/CM from the DSC HU/CM Bracket as shown in the illustration.
2. Tighten the bolt as shown in the illustration.

Tightening torque

4.3-6.5 N.m {44-66 kgf.cm, 39-57 in.lbf}

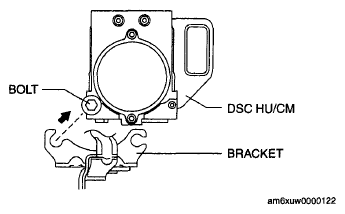

Fig 1: Installing DSC HU/CM From DSC HU/CM Bracket

Courtesy of MAZDA MOTORS CORP.
