DSC Location Index

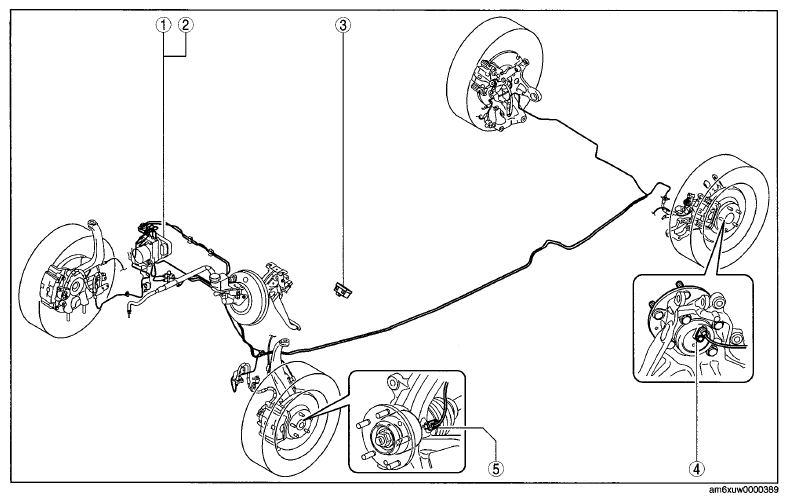

Fig 1: DSC Components Location

Courtesy of MAZDA MOTORS CORP.

PARTS DESCRIPTION CHART

1	DSC HU/CM (See DSC HU/CM REMOVAL/INSTALLATION .) (See DSC CONFIGURATION .) (See DSC HU/CM INSPECTION .)
2	Brake fluid pressure sensor (Built into DSC HU/CM) (See BRAKE FLUID PRESSURE SENSOR INSPECTION .)
3	DSC OFF switch (See DSC OFF SWITCH REMOVAL/INSTALLATION .) (See DSC OFF SWITCH INSPECTION .)
4	Rear ABS wheel-speed sensor (See REAR ABS WHEEL-SPEED SENSOR REMOVAL/INSTALLATION .) (See REAR ABS WHEEL-SPEED SENSOR INSPECTION .)
5	Front ABS wheel-speed sensor (See FRONT ABS WHEEL-SPEED SENSOR REMOVAL/INSTALLATION .) (See FRONT ABS WHEEL-SPEED SENSOR INSPECTION .)
