Front Abs Wheel-Speed Sensor Removal/Installation: Notes

1. Remove in the order indicated in the table.
2. Install in the reverse order of removal.
3. After installation, verify that there is no twisting in the ABS wheel-speed sensor.

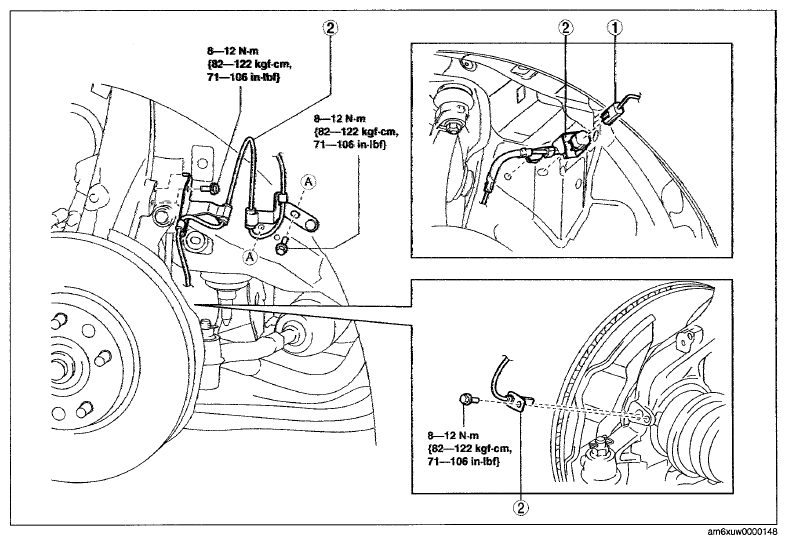

Fig 1: Front ABS Wheel-Speed Sensor And Connector With Torque Specification

Courtesy of MAZDA MOTORS CORP.

CONNECTOR TERMINAL REFERENCE CHART

1	Connector (See CONNECTOR REMOVAL NOTE .)
2	Front ABS wheel-speed sensor
