Rear Abs Wheel-Speed Sensor Removal/Installation

1. Remove the rear seat cushion. (See REAR SEAT CUSHION REMOVAL/INSTALLATION .)
2. Remove the rear side seat back. (See REAR SIDE SEAT BACK REMOVAL/INSTALLATION .)
3. Remove the trunk end trim. (See TRUNK END TRIM REMOVAL/INSTALLATION .)
4. Remove the trunk side trim. (See TRUNK SIDE TRIM REMOVAL/INSTALLATION .)
5. Disconnect the rear ABS wheel-speed sensor connector.
6. Press the rear ABS wheel-speed sensor tabs and press out the sensor toward the outside of the vehicle.
7. Remove in the order indicated in the table.
8. Install in the reverse order of removal.

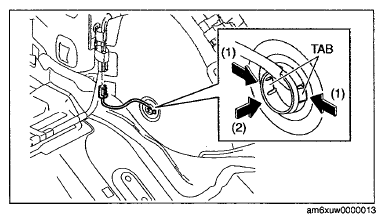

Fig 1: Rear ABS Wheel-Speed Sensor Tabs And Connector

Courtesy of MAZDA MOTORS CORP.

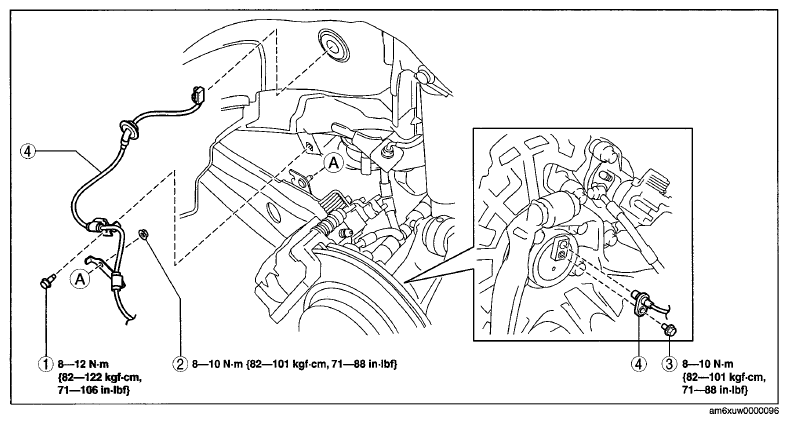

Fig 2: Rear ABS Wheel-Speed Sensor, Bolts And Nut With Torque Specification

Courtesy of MAZDA MOTORS CORP.

PARTS DESCRIPTION CHART

1	Bolt
2	Nut
3	Bolt
4	Rear ABS wheel-speed sensor
