Control System Location Index

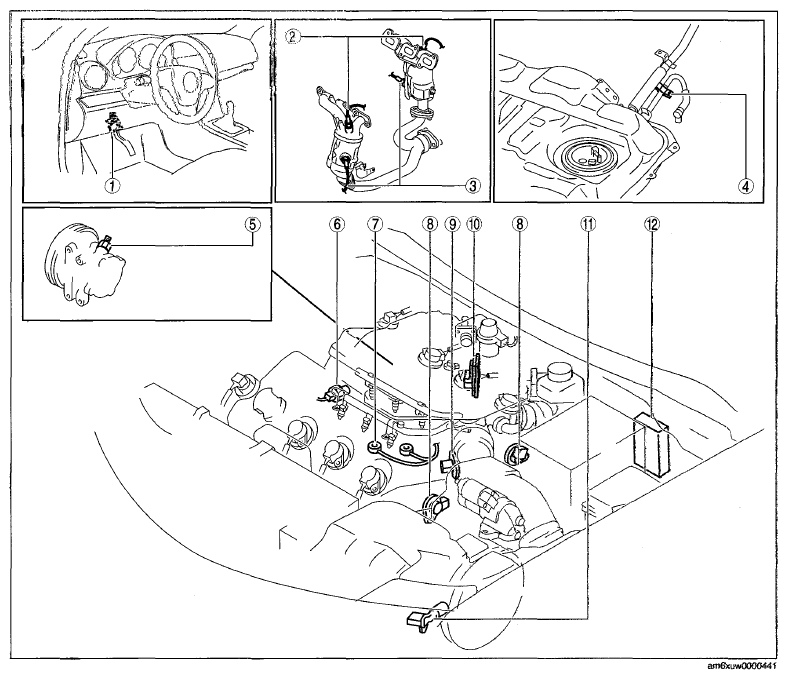

Fig 1: Control System Location Index (MZI 3.7 V6)

Courtesy of MAZDA MOTORS CORP.

CONTROL SYSTEM REFERENCE CHART

1	APP sensor (See ACCELERATOR PEDAL POSITION (APP) SENSOR INSPECTION .) (See ACCELERATOR PEDAL REMOVAL/INSTALLATION .)
2	A/F sensor (See AIR FUEL RATIO (A/F) SENSOR REMOVAL/INSTALLATION .) (See AIR FUEL RATIO (A/F) SENSOR INSPECTION .)
3	HO2S (See HEATED OXYGEN SENSOR (HO2S) REMOVAL/INSTALLATION .) (See HEATED OXYGEN SENSOR (HO2S) INSPECTION .)
4	Fuel tank pressure sensor (See FUEL TANK PRESSURE SENSOR INSPECTION .) (See FUEL TANK REMOVAL/INSTALLATION .)
5	PSP switch (See POWER STEERING PRESSURE (PSP) SWITCH INSPECTION .) (See POWER STEERING OIL PUMP DISASSEMBLY/ASSEMBLY [MZI 3.7 V6] .)
6	CHT sensor (See CYLINDER HEAD TEMPERATURE (CHT) SENSOR REMOVAL/INSTALLATION .) (See CYLINDER HEAD TEMPERATURE (CHT) SENSOR INSPECTION .)
7	KS (See KNOCK SENSOR (KS) REMOVAL/INSTALLATION .) (See KNOCK SENSOR (KS) INSPECTION .)
8	CMP sensor (See CAMSHAFT POSITION (CMP) SENSOR REMOVAL/INSTALLATION .) (See CAMSHAFT POSITION (CMP) SENSOR INSPECTION .)
9	MAF/IAT sensor (See MASS AIR FLOW (MAF)/INTAKE AIR TEMPERATURE (SAT) SENSOR REMOVAL/INSTALLATION .) (See MASS AIR FLOW (MAF) SENSOR INSPECTION .) (See INTAKE AIR TEMPERATURE (IAT) SENSOR INSPECTION .)
10	TP sensor (See THROTTLE POSITION (TP) SENSOR INSPECTION .) (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION .)
11	CKP sensor (See CRANKSHAFT POSITION (CKP) SENSOR REMOVAL/INSTALLATION .) (See CRANKSHAFT POSITION (CKP) SENSOR INSPECTION .)
12	PCM (See PCM REMOVAL/INSTALLATION .) (See PCM INSPECTION .) (See PCM CONFIGURATION .)
