Removal and Replacement

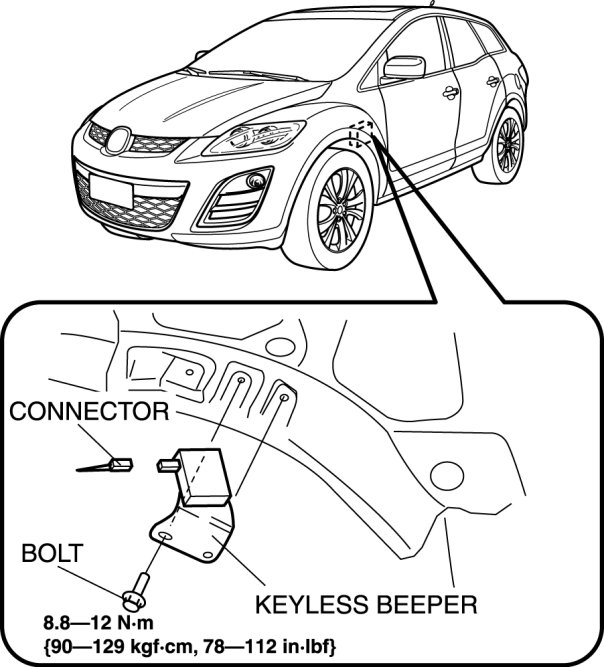

KEYLESS BEEPER REMOVAL/INSTALLATION [ADVANCED KEYLESS ENTRY AND START SYSTEM]

1. Disconnect the negative battery cable.

2. Remove the mudguard

3. Remove the bolts.

4. Disconnect the connector, then remove the keyless beeper.






5. Install in the reverse order of removal.
