System Wiring Diagram - Advanced Keyless Entry And Start System

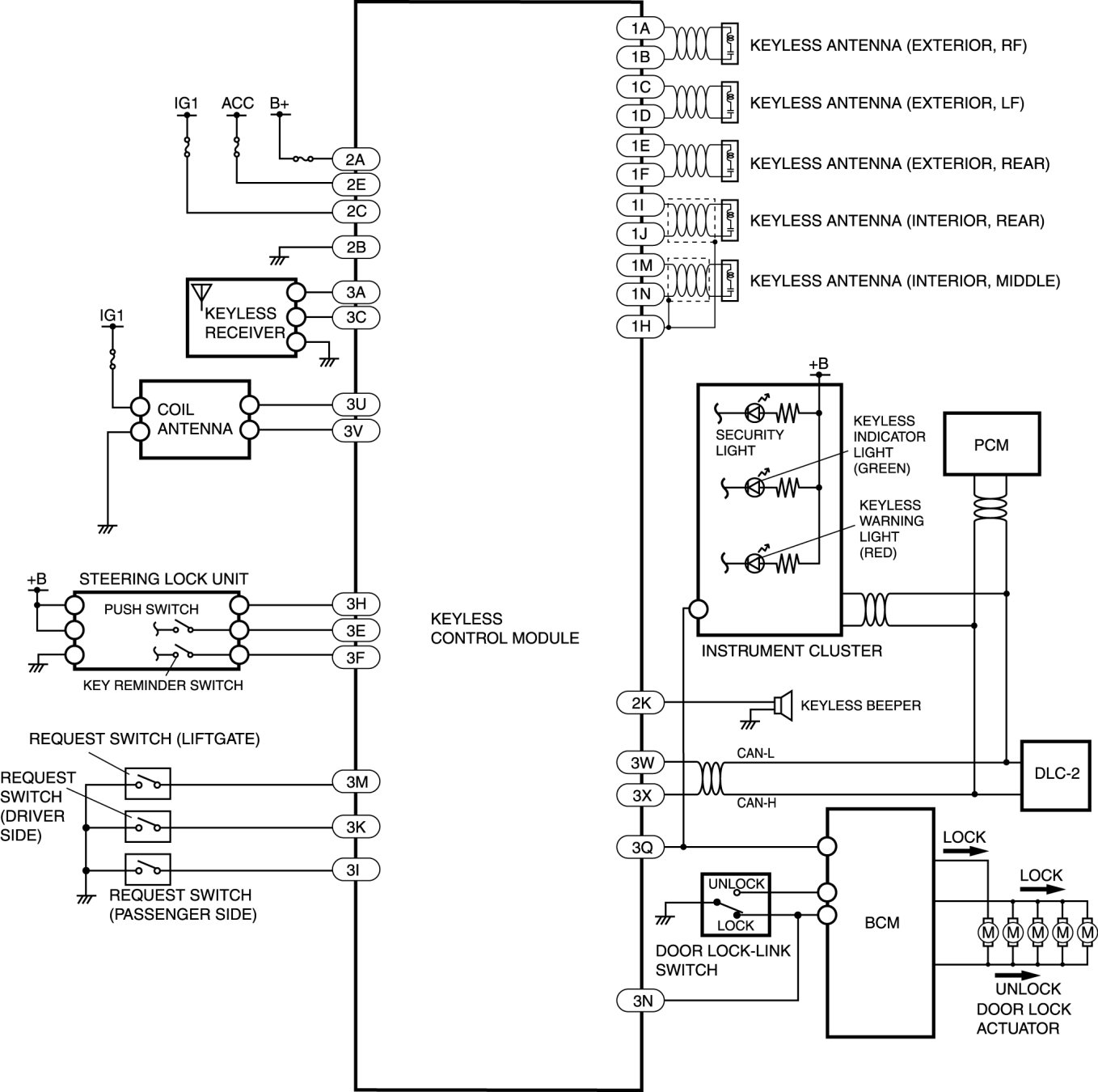

SYSTEM WIRING DIAGRAM [ADVANCED KEYLESS ENTRY AND START SYSTEM]
