Lighting Systems

AUTO LIGHT/WIPER CONTROL MODULE REMOVAL/INSTALLATION

CAUTION:
- Perform the auto light/wiper control module configuration after replacing the auto light/wiper control module to assure that the auto light/wiper system operates correctly.

1. Disconnect the negative battery cable.

2. Remove the meter hood. Meter Hood Removal/Installation

3. Remove the instrument cluster. Removal and Replacement

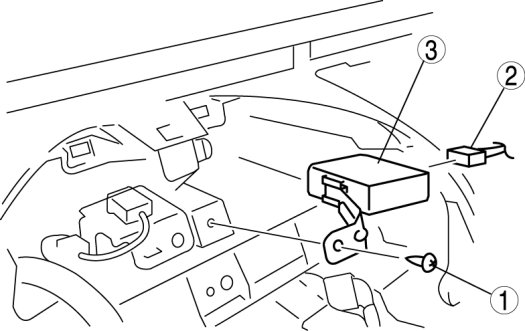

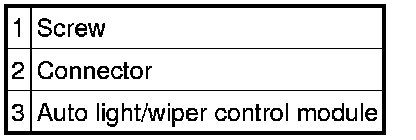

4. Remove in the order indicated in the table.










5. Install in the reverse order of removal.

6. Perform the auto light/wiper control module configuration. Auto Light/Wiper Control Module Configuration
