Keyless Entry Module: Service and Repair

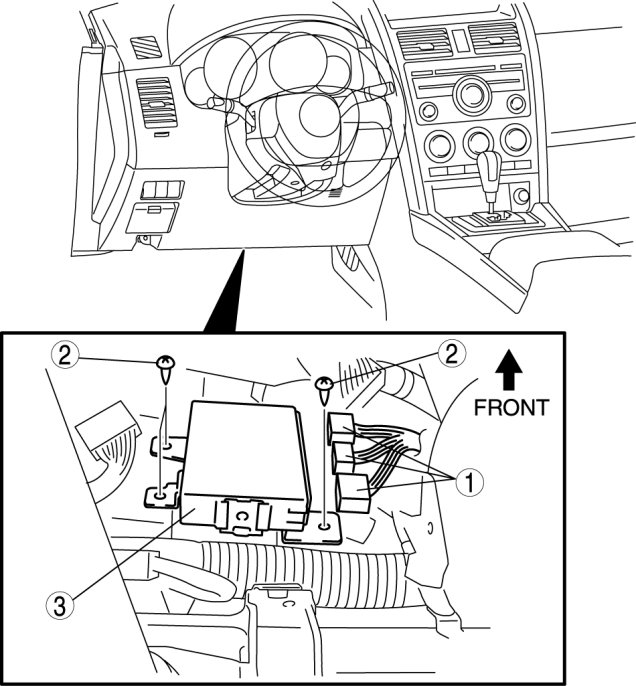

KEYLESS CONTROL MODULE REMOVAL/INSTALLATION [ADVANCED KEYLESS ENTRY AND START SYSTEM]

NOTE:
- If the keyless control module is replaced, always perform the following procedure.

- Keyless control module configuration Keyless Control Module Configuration
- Advanced key programming Clearing Advanced Key
- Steering lock unit programming Steering Lock Unit ID Code Registration
- Immobilizer system resetting (with immobilizer system) Advanced Keyless Entry and Start System

1. Disconnect the negative battery cable.

2. Remove the dashboard under cover (Driver side). Dashboard Under Cover Removal/Installation

3. Remove the auto light/wiper control module. (Vehicles with auto light/wiper system) Auto Light/Wiper Control Module Removal/Installation

4. Remove the auto light-off control module. (Vehicles without auto light/wiper system) Auto Light-Off Control Module Removal/Installation

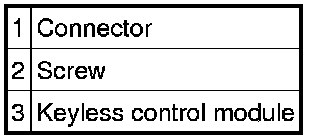

5. Remove in the order indicated in the table.










6. Install in the reverse order of removal.
