Component Tests and General Diagnostics

KEYLESS CONTROL MODULE INSPECTION [ADVANCED KEYLESS ENTRY AND START SYSTEM]

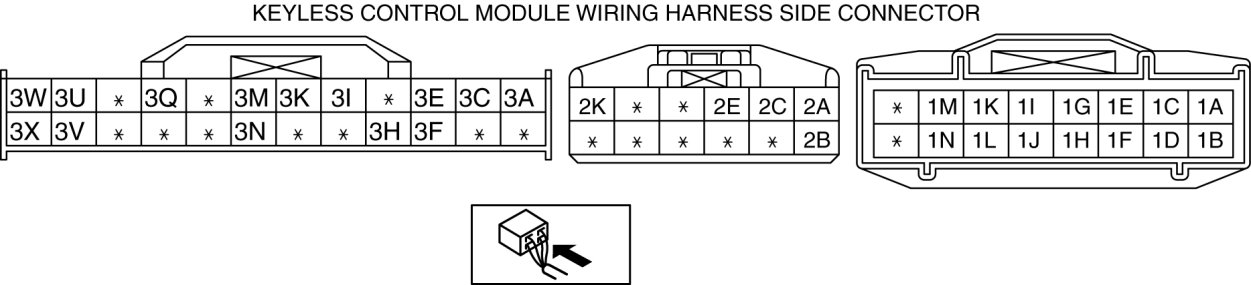

1. Measure the voltage or inspect for continuity according to the Terminal Voltage Table (Reference).

- If the voltage is not as specified in the Terminal Voltage Table (Reference), inspect the parts under "Inspection item(s)" and related wiring harnesses.

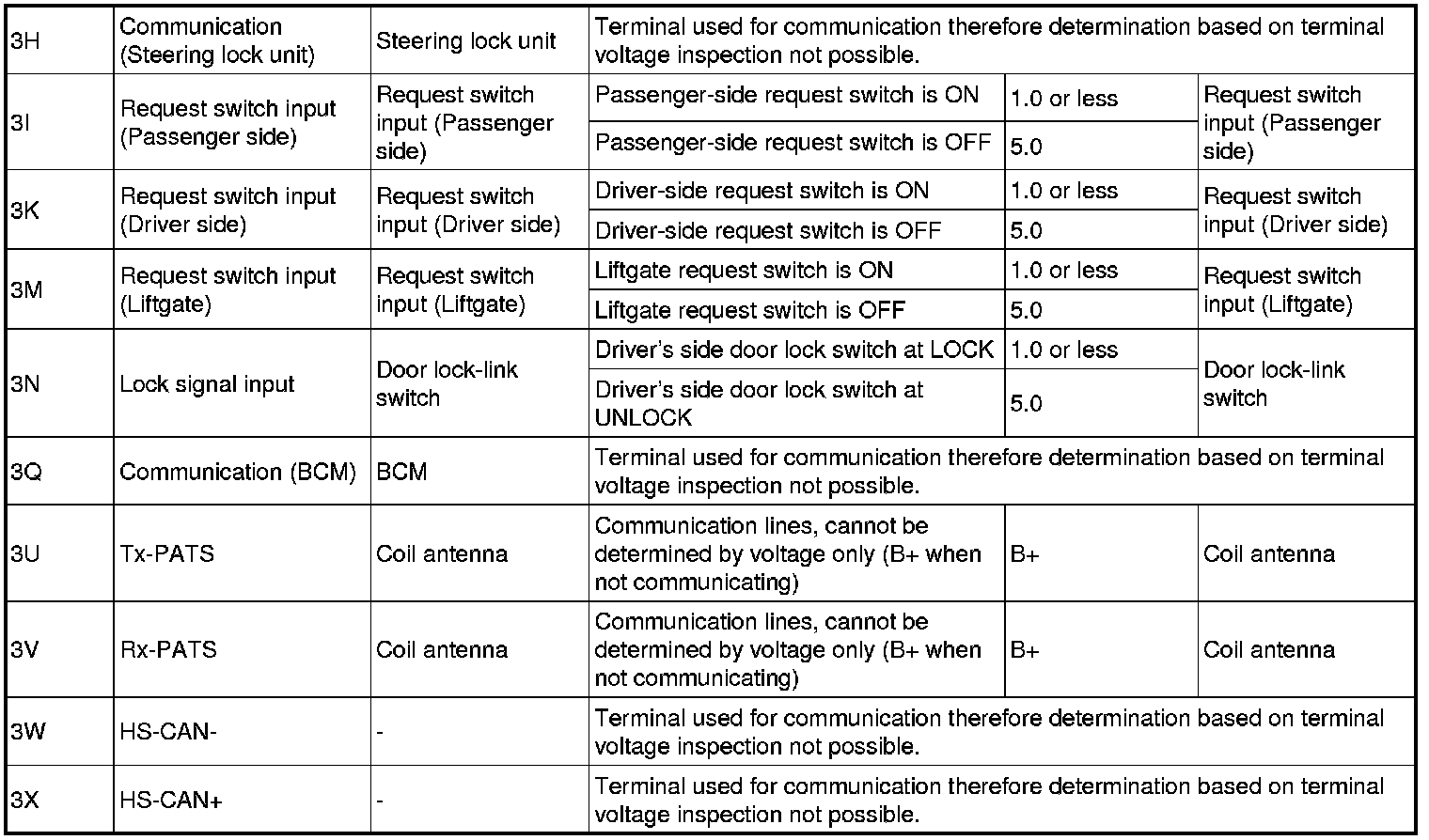

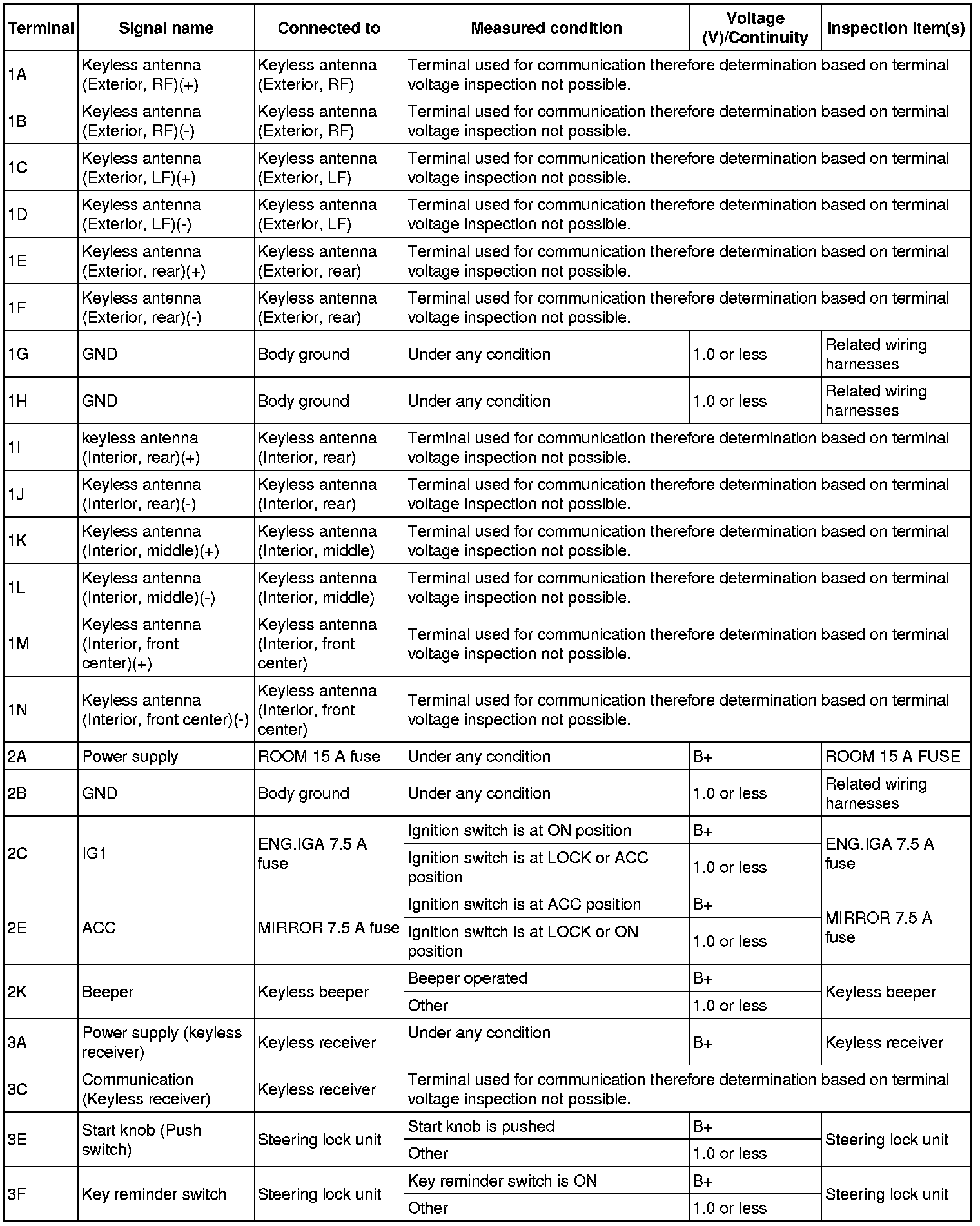

Terminal Voltage Table (Reference)
