Memory Positioning Module: Service and Repair

POSITION MEMORY CONTROL MODULE REMOVAL/INSTALLATION

1. Operate the power seat switch and move the seat cushion forward and upward.

2. Turn the ignition switch to the LOCK position.

3. Disconnect the negative battery cable and wait 1 min or more.

4. Remove the driver-side front seat. Front Seat Removal/Installation

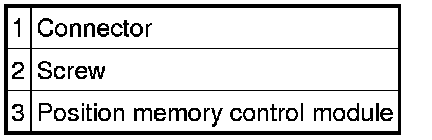

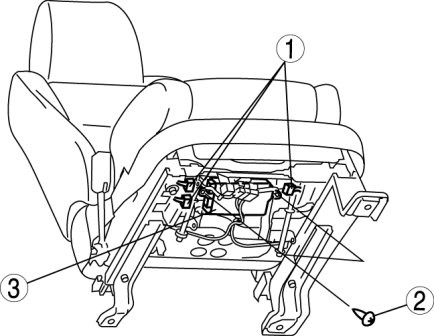

5. Remove in the order indicated in the table.










6. Install in the reverse order of removal.
