Fan Control Module No.1 (Dual Fan Control Module)
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

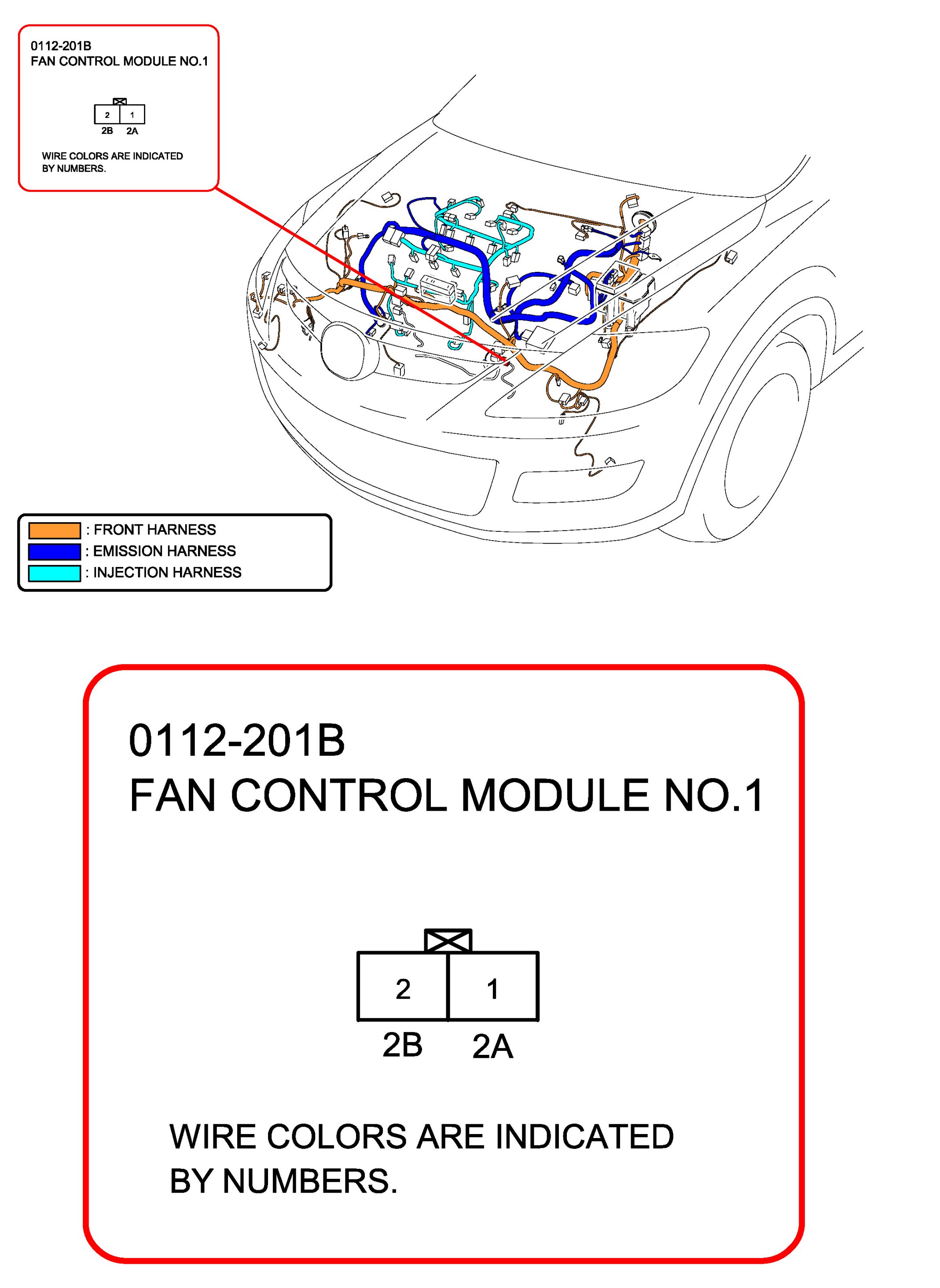

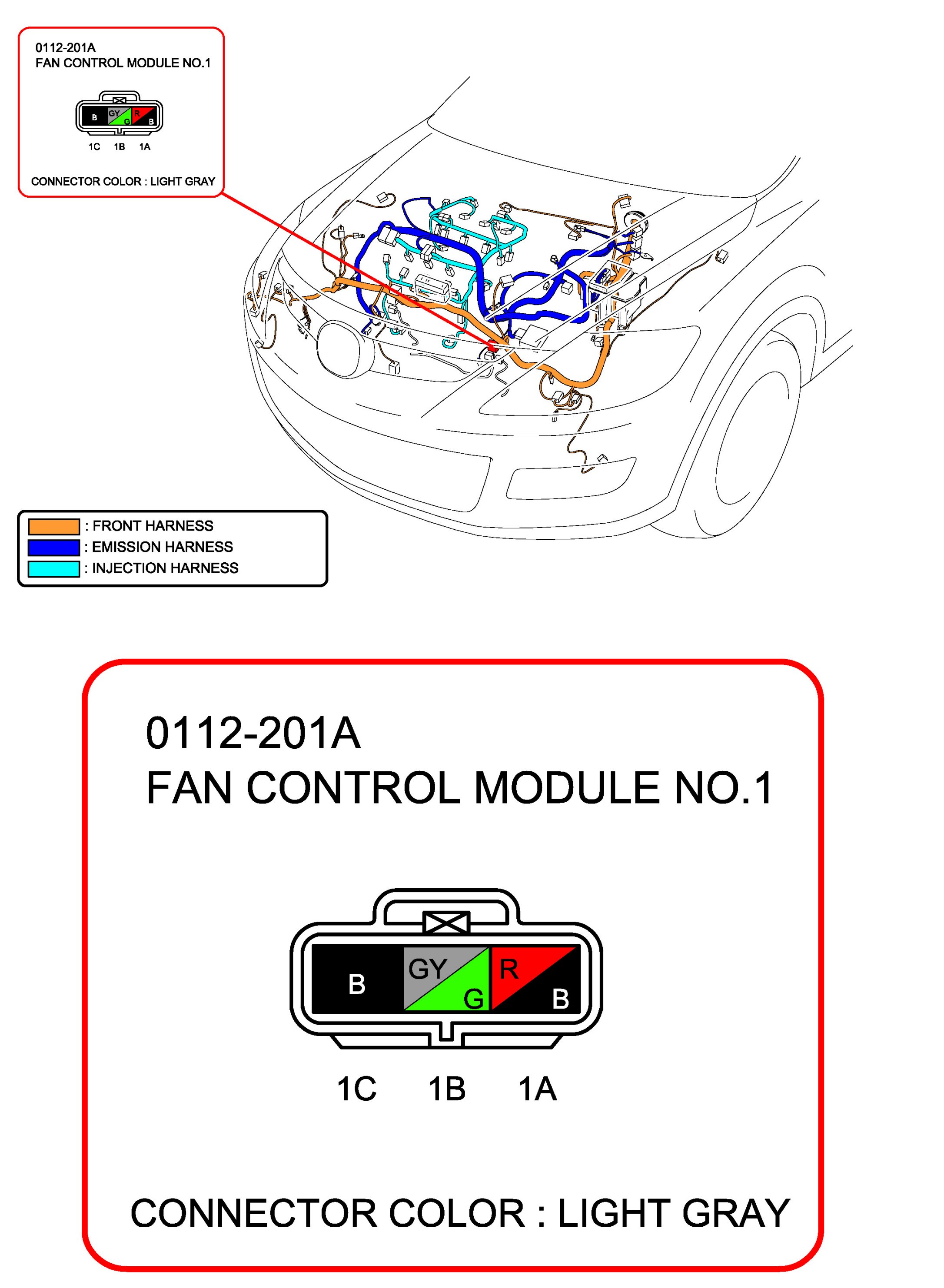

Fan Control Module No.1 (Dual Fan Control Module)
