Control Module: Service and Repair

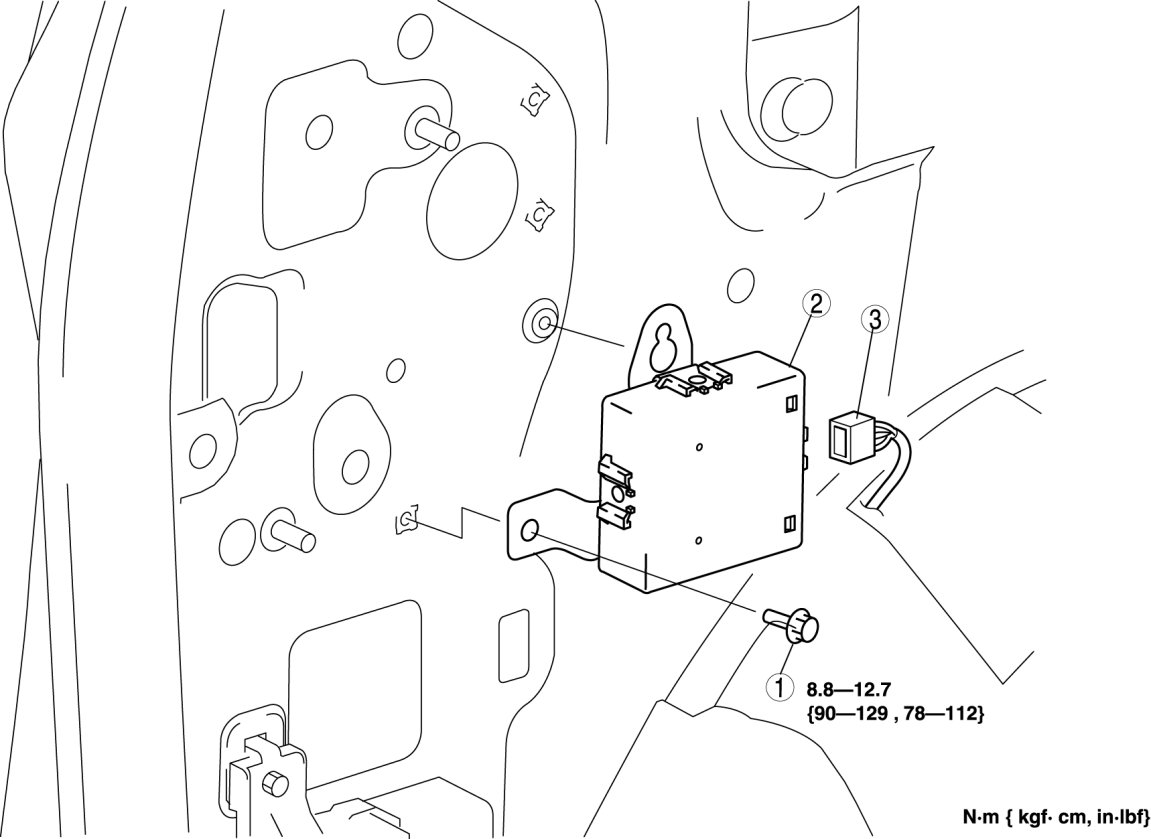

AWD CONTROL MODULE REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.

2. Remove the dashboard under cover (Driver side). Dashboard Under Cover Removal/Installation

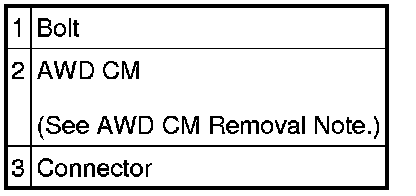

3. Remove in the order indicated in the table.

4. Install in the reverse order of removal.

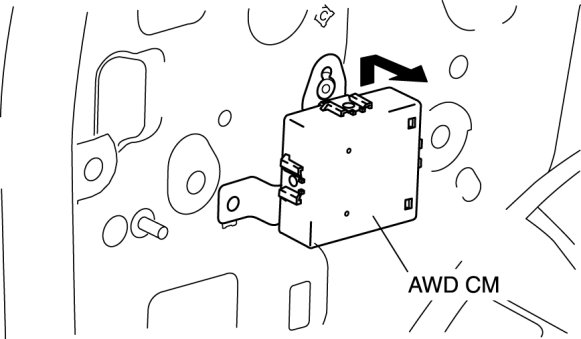

AWD CM Removal Note

1. Push up the AWD CM slightly, and remove it.
