Lighting Systems

2011 -
CX-9 -
Body and Accessories

AUTO LIGHT/WIPER CONTROL MODULE REMOVAL/INSTALLATION

NOTE:
- Auto light-off system are integrated with the auto light/wiper control module.

1. Disconnect the negative battery cable.

2. Remove the dashboard under cover (Driver side). Dashboard Under Cover Removal/Installation

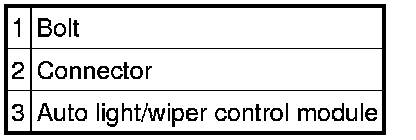

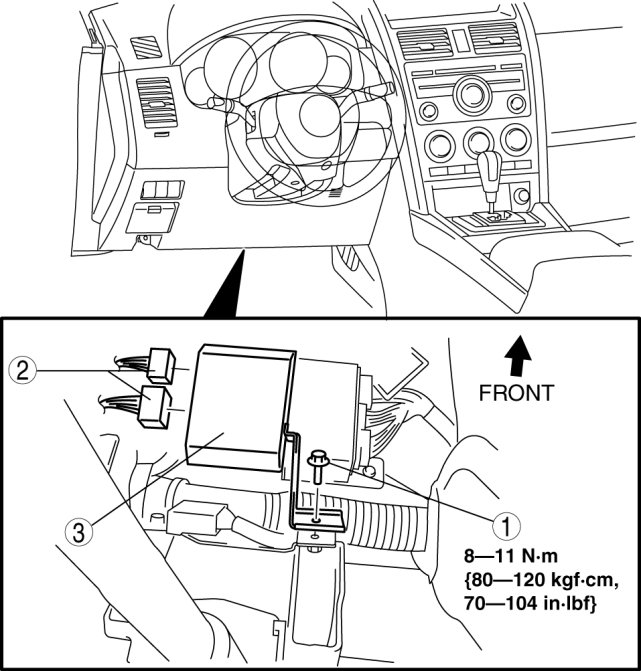

3. Remove in the order indicated in the table.










4. Install in the reverse order of removal.

5. Perform the auto light/wiper control module configuration after replacing the auto light/wiper control module. Auto Light/Wiper Control Module Configuration

CAUTION:
- Perform the auto light/wiper control module configuration after replacing the auto light/wiper control module to assure that the auto light/wiper system operates correctly.
