Overhaul

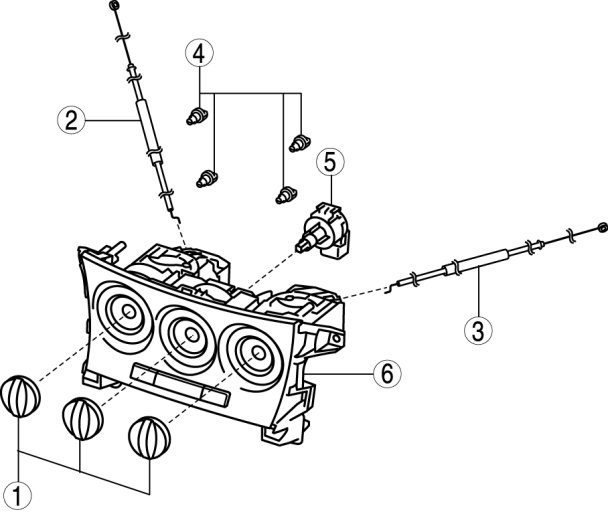

CLIMATE CONTROL UNIT DISASSEMBLY/ASSEMBLY [MANUAL AIR CONDITIONER]

1. Disassemble in the order indicated in the figure.










2. Assemble in the reverse order of disassembly.

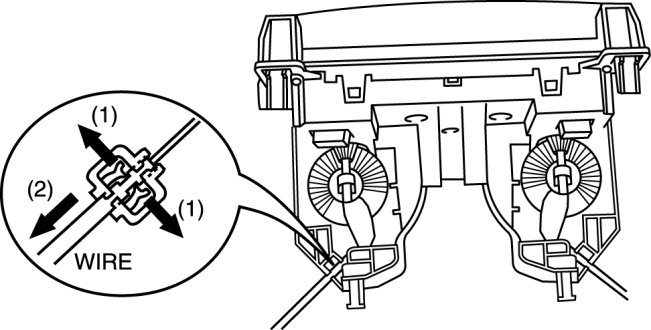

Wire Removal Note

1. Remove in the order indicated in the figure.

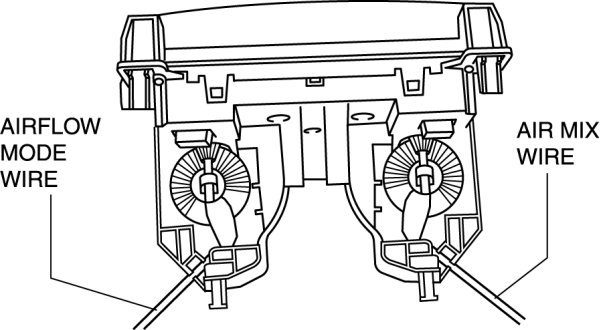

Wire Installation Note

1. Install as shown in the figure.
