Control System Device And Control Relationship Chart

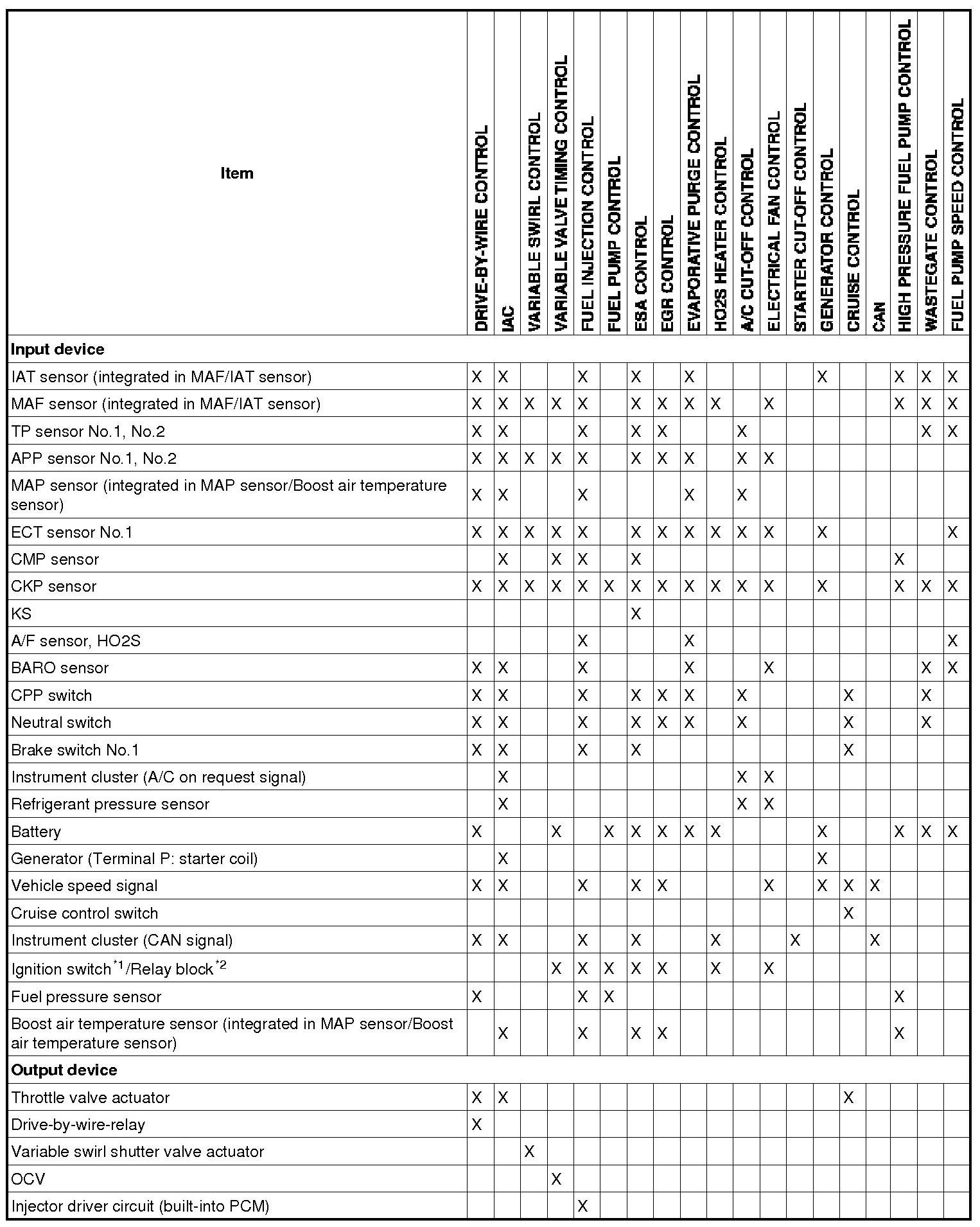

CONTROL SYSTEM DEVICE AND CONTROL RELATIONSHIP CHART [L3 WITH TC]
X: Applied
*1
Vehicles without advanced keyless entry and push button start system
*2
Vehicles with advanced keyless entry and push button start system
