Fuel Pressure Sensor: Testing and Inspection

FUEL PRESSURE SENSOR INSPECTION [L3 WITH TC]

1. Connect the M-MDS to the DLC-2.






2. Switch the ignition to ON (Engine off).

3. Select the FUEL_PRES PID on the M-MDS.

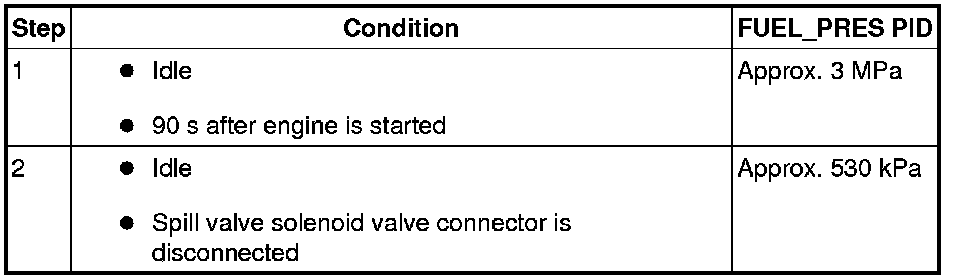

4. After warming up the engine, verify that the FUEL_PRES PID is at the standard value under the following conditions.

- If not as verified, replace the fuel delivery pipe.





5. After connecting the spill valve control solenoid valve connector, clear the DTC.
