Keyless Receiver Removal/Installation - With Keyless Entry System

KEYLESS RECEIVER REMOVAL/INSTALLATION [WITH KEYLESS ENTRY SYSTEM]

1. Disconnect the negative battery cable.

2. Remove the following parts:
a. Speaker grille Speaker Grille Removal/Installation

b. Center speaker Center Speaker Removal/Installation

c. Center panel unit Center Panel Unit Removal/Installation

d. Center panel Center Panel Removal/Installation

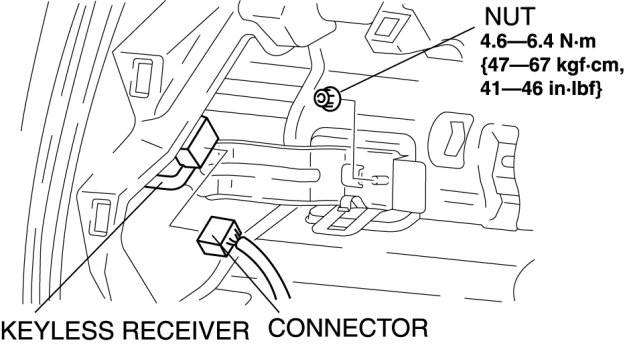

3. Remove the nuts.






4. Disconnect the keyless receiver connector.

5. Install in the reverse order of removal.
