Card Key Battery Replacement

CARD KEY BATTERY REPLACEMENT [WITH ADVANCED KEYLESS ENTRY AND START SYSTEM]

Card Key Type

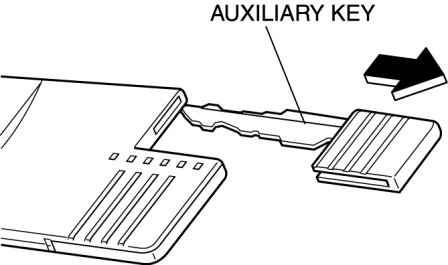

1. Pull out the auxiliary key.

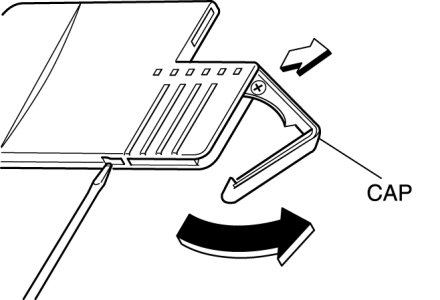

2. Replace the cap using a flathead screwdriver, then rotate and remove the cap.

CAUTION:
- Do not turn the cap excessively. The cap may be damaged.

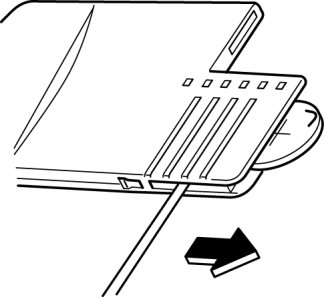

3. Insert a flathead screwdriver into the crack and press the battery out.

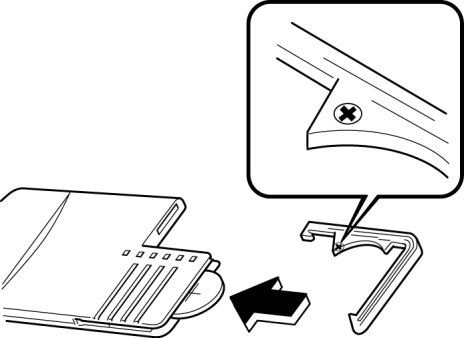

4. Insert the new battery (CR2025) with the positive pole (+) facing the (+) mark on the cap.






Battery specification
- Lithium CR2025 x 1

NOTE:
- The batteries will last about 1 years when used 10 times a day.

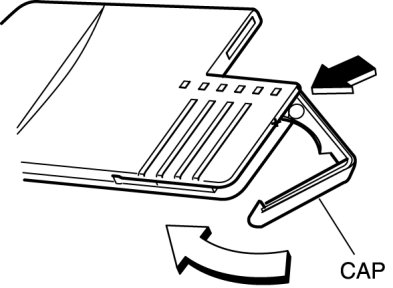

5. Rotate and close the cap.






6. Reinsert the auxiliary key.
