Memory Positioning Switch: Testing and Inspection

POSITION MEMORY SWITCH INSPECTION

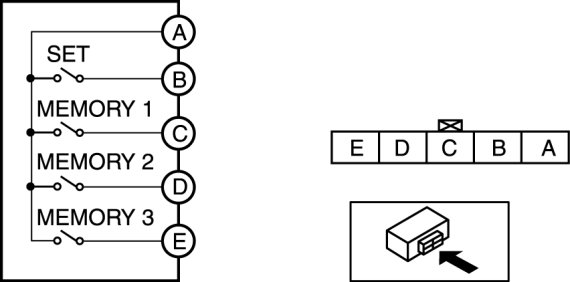

1. Disconnect the position memory switch connector.

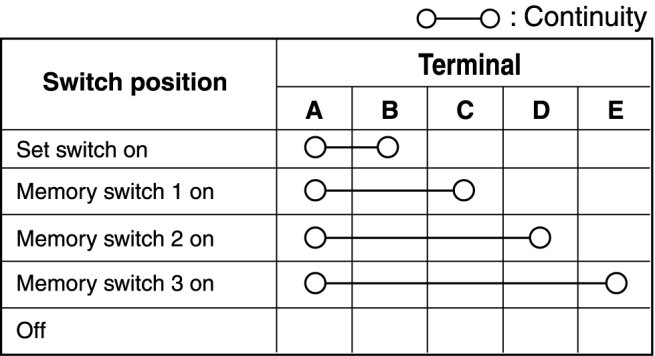

2. Inspect for continuity between the position memory switch connector terminals.






- If not as specified, replace the position memory switch.
