Cruise Control Switch: Testing and Inspection

CRUISE CONTROL SWITCH INSPECTION [13B-MSP]

1. Disconnect the negative battery cable and wait for 1 min or more.

2. Remove the driver-side air bag module. Driver-Side Air Bag Module Removal/Installation

3. Disconnect the cruise control switch connector. Service and Repair

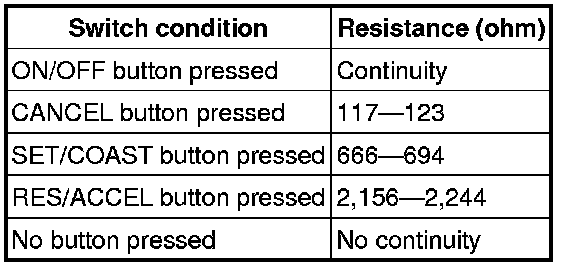

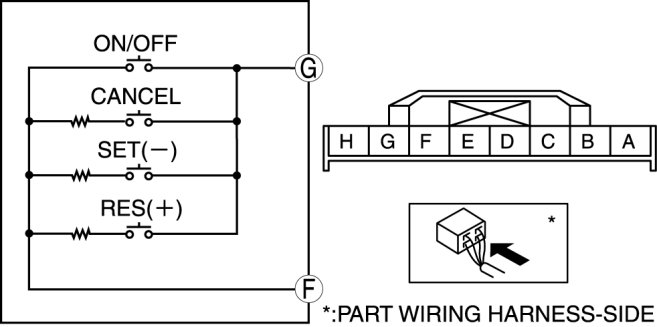

4. Inspect for resistance and continuity between cruise control switch terminals G-F using a tester.






- If not as specified, replace the audio control switch. Service and Repair

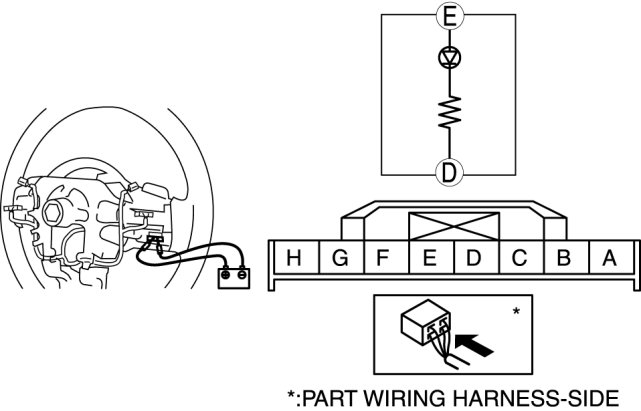

5. Apply battery positive voltage to cruise control switch terminal E, and connect terminal D to ground.






6. Verify that the LED illuminates.

- If the LED does not illuminate, replace the audio control switch. Service and Repair
