Full-Auto Air Conditioner

CLIMATE CONTROL UNIT REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER]

1. Disconnect the negative battery cable.

2. Remove the lower panel. Lower Panel Removal/Installation

3. Remove the console. Removal and Replacement

4. Remove the center panel unit. Center Panel Unit Removal/Installation

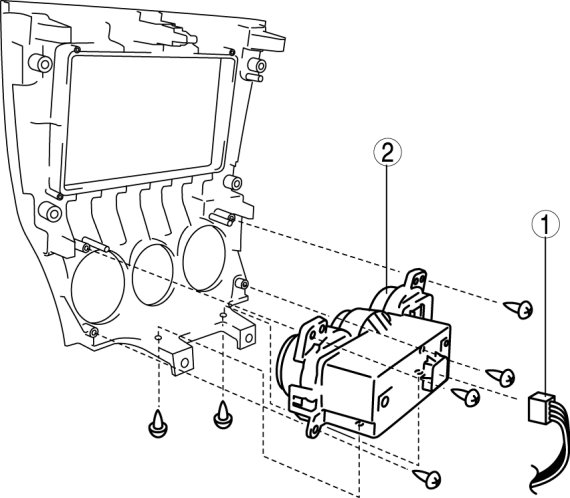

5. Remove in the order indicated in the table.










6. Install in the reverse order of removal.
