Refrigerant System General Procedures

REFRIGERANT SYSTEM GENERAL PROCEDURES

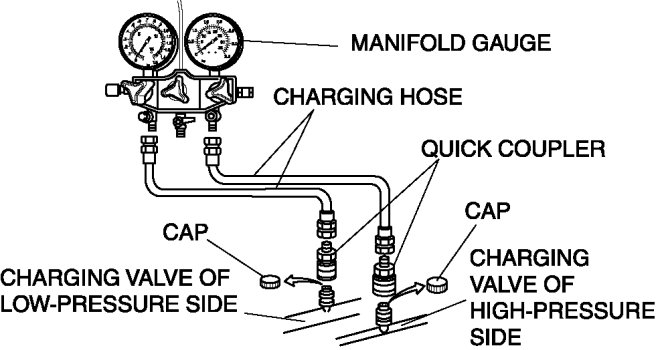

Manifold Gauge Set Installation

1. Fully close the valves of the manifold gauge.

2. Connect the charging hoses to the high/low pressure side joints of the manifold gauge.






3. Connect the quick couplers to the ends of the charging hoses.

4. Connect the quick couplers to the charging valves.
