PCM Temperature Sensor Inspection

PCM TEMPERATURE SENSOR INSPECTION [13B-MSP]

NOTE:
- Before performing the following inspection, make sure to follow the troubleshooting flowchart. Initial Inspection and Diagnostic Overview

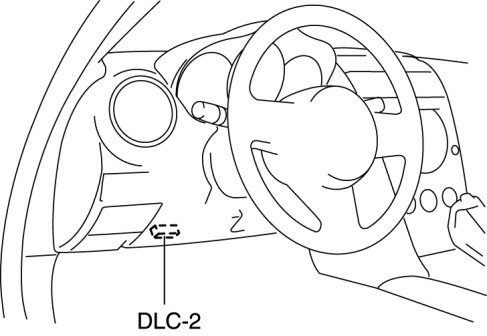

1. Connect the M-MDS to the DLC-2.






2. Turn the ignition switch to the ON position.

3. Select PCM_T on the M-MDS.

4. Verify that the PCM_T PID voltage is within the specification.

- If not as verified, replace the PCM. Service and Repair

PCM Temperature Sensor Output Voltage
- 1.2-2.6 V
