Evaporative Emissions System: Service and Repair

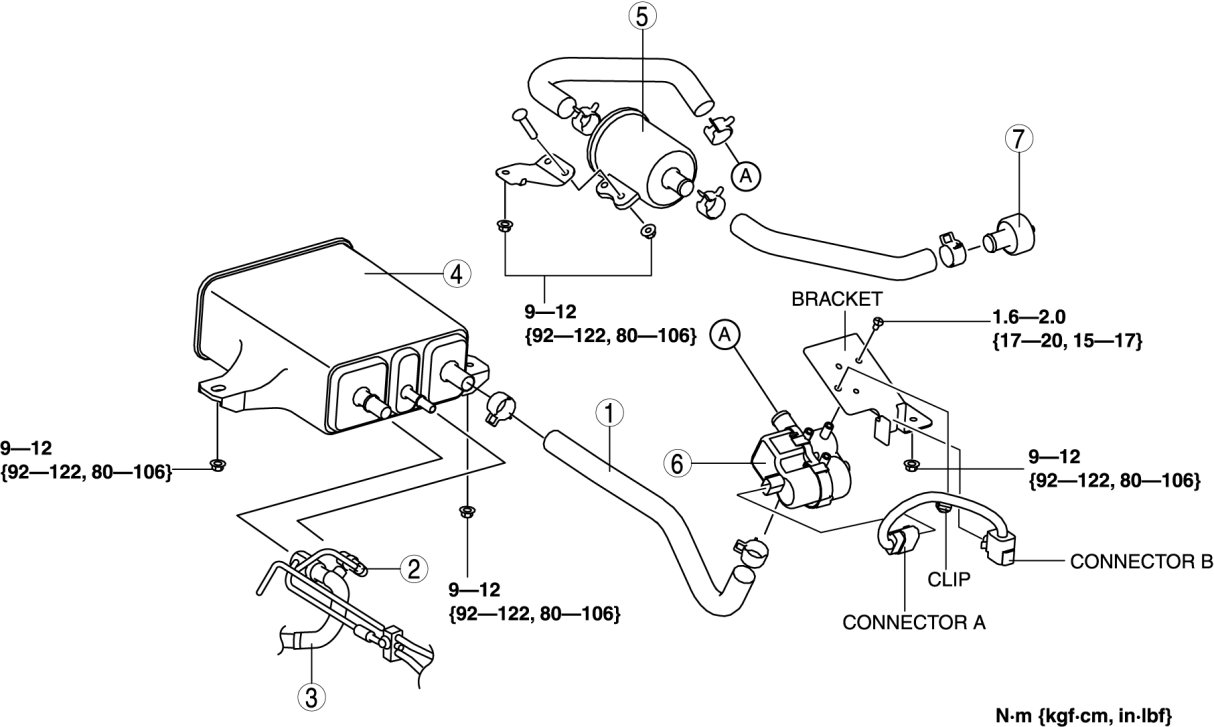

EVAPORATIVE EMISSION (EVAP) CONTROL SYSTEM REMOVAL/INSTALLATION [13B-MSP]

1. Remove the rear differential. Removal and Replacement

2. Remove in the order indicated in the table.

3. Install in the reverse order of removal.










Evaporative Chamber Installation Note

1. Install the evaporative chamber to the hose.

2. Insert the evaporative chamber into crossmember No.5.

EVAP System Leak Detection Pump Installation Note

1. Install the bracket on the EVAP system leak detection pump.

2. Install the connector A.

3. Install the connector B.

4. Install the clip.
