Knock Sensor: Service and Repair

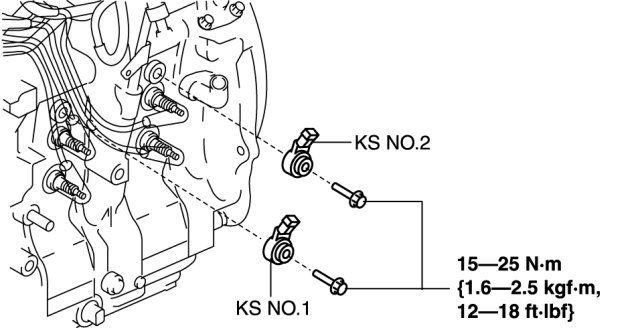

KNOCK SENSOR (KS) REMOVAL/INSTALLATION [13B-MSP]

1. Remove the battery cover. Removal and Replacement

2. Disconnect the negative battery cable.

3. Disconnect the KS connector.

4. Remove the KS.






5. Install in the reverse order of removal.
