Engine Control Module: Service and Repair

PCM REMOVAL/INSTALLATION [13B-MSP]

1. Remove the battery cover. Removal and Replacement

2. Disconnect the negative battery cable.

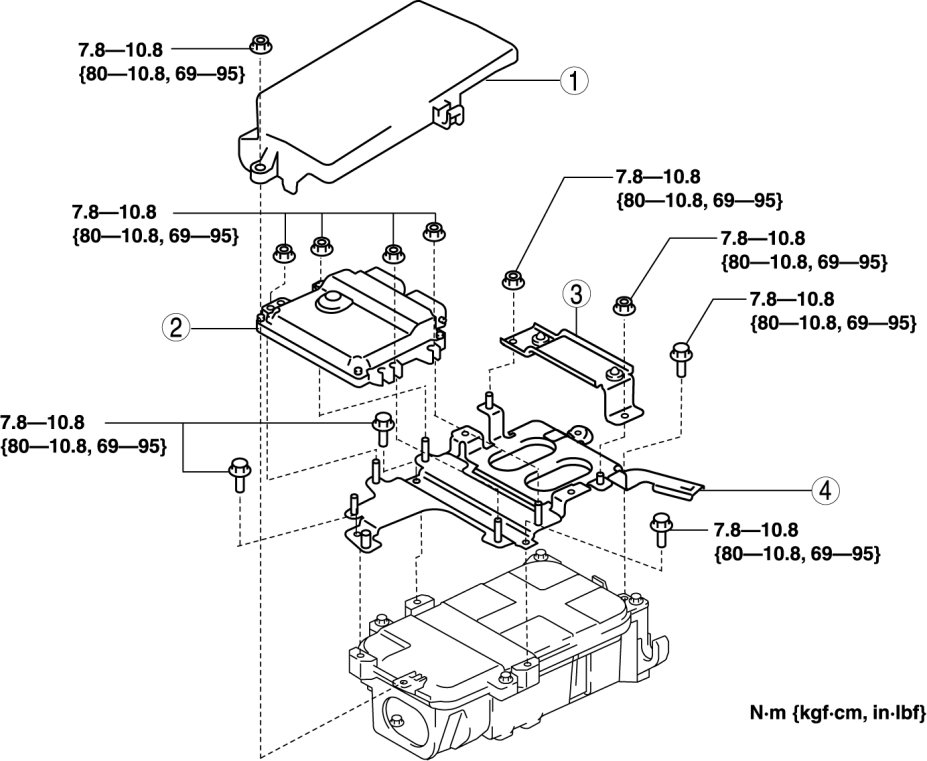

3. Remove in the order indicated in the table.

4. Install in the reverse order of removal.

5. When replacing the PCM on the vehicles, perform the following:

- PCM configuration Programming and Relearning
- Immobilizer system component replacement/key addition and clearing Advanced Keyless Entry and Start System Keyless Entry System
