Keyless Entry Module: Service and Repair

KEYLESS CONTROL MODULE REMOVAL/INSTALLATION

1. When replacing the keyless control module, perform the following procedure:

- Keyless Control Module Configuration
Keyless Control Module Configuration
- Immobilizer System-related Parts Programming[with advanced keyless system]
(See. Advanced Keyless Entry and Start System)
- Immobilizer system-related parts programming[with keyless entry system]
Keyless Entry System

2. Disconnect the negative battery cable.

3. Remove the front side trim. Front Side Trim Removal/Installation

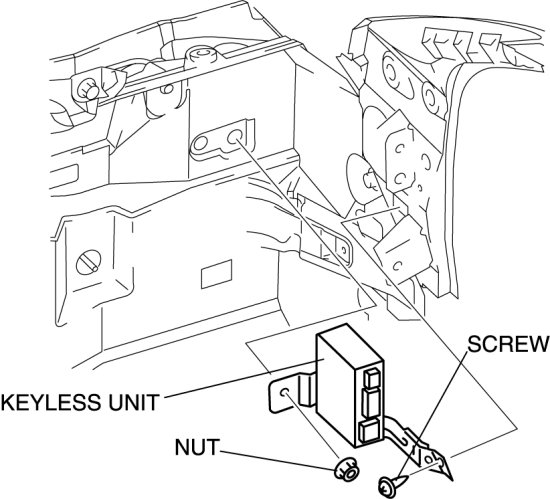

4. Remove the nut and screw.






5. Remove the connector clip installed to the bracket by shifting the keyless control module downward.

6. Disconnect the keyless control module connector.

7. Install in the reverse order of removal.
