Alignment

FRONT WHEEL ALIGNMENT

Specification (Unloaded Condition)

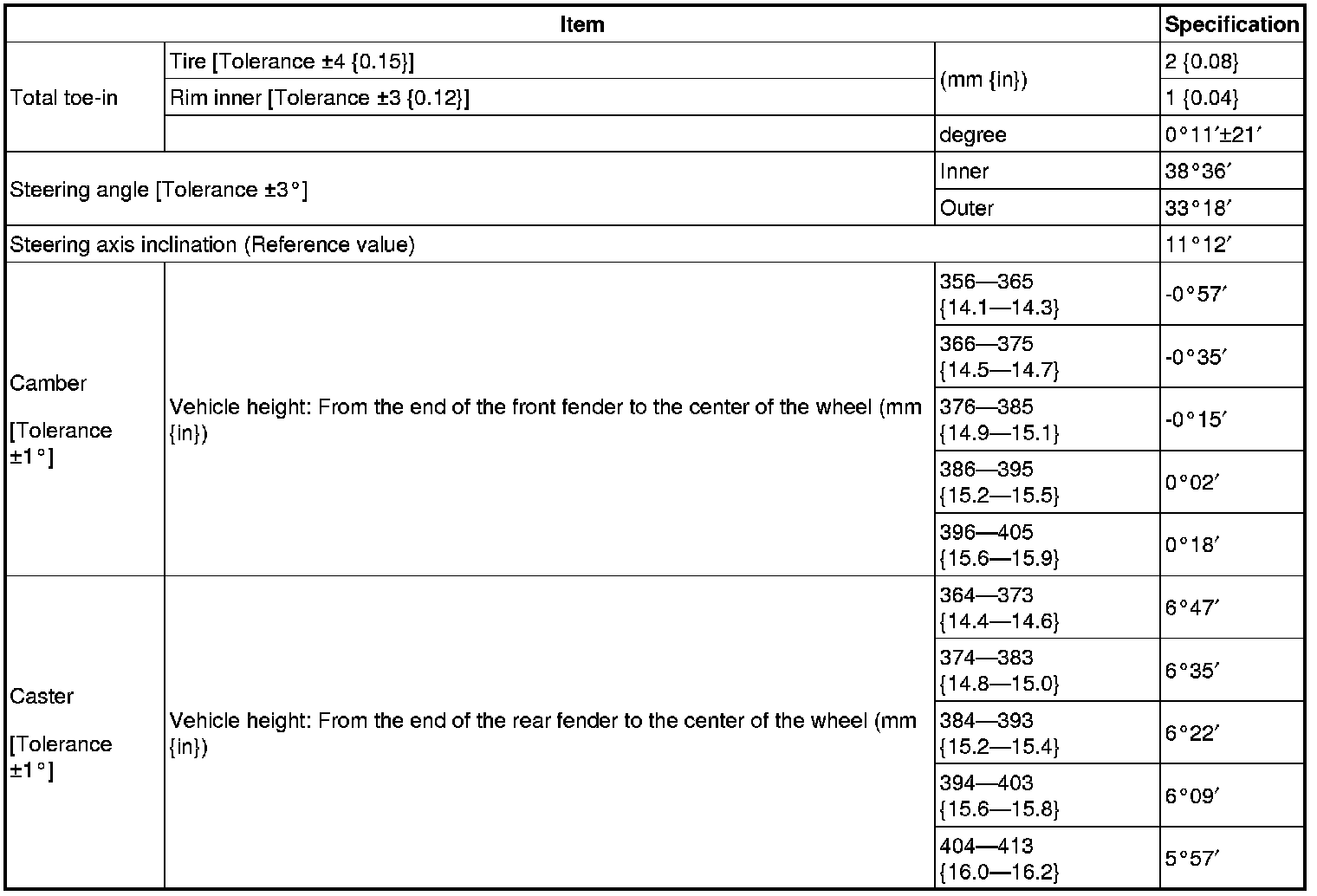

Front wheel alignment [Standard suspension]

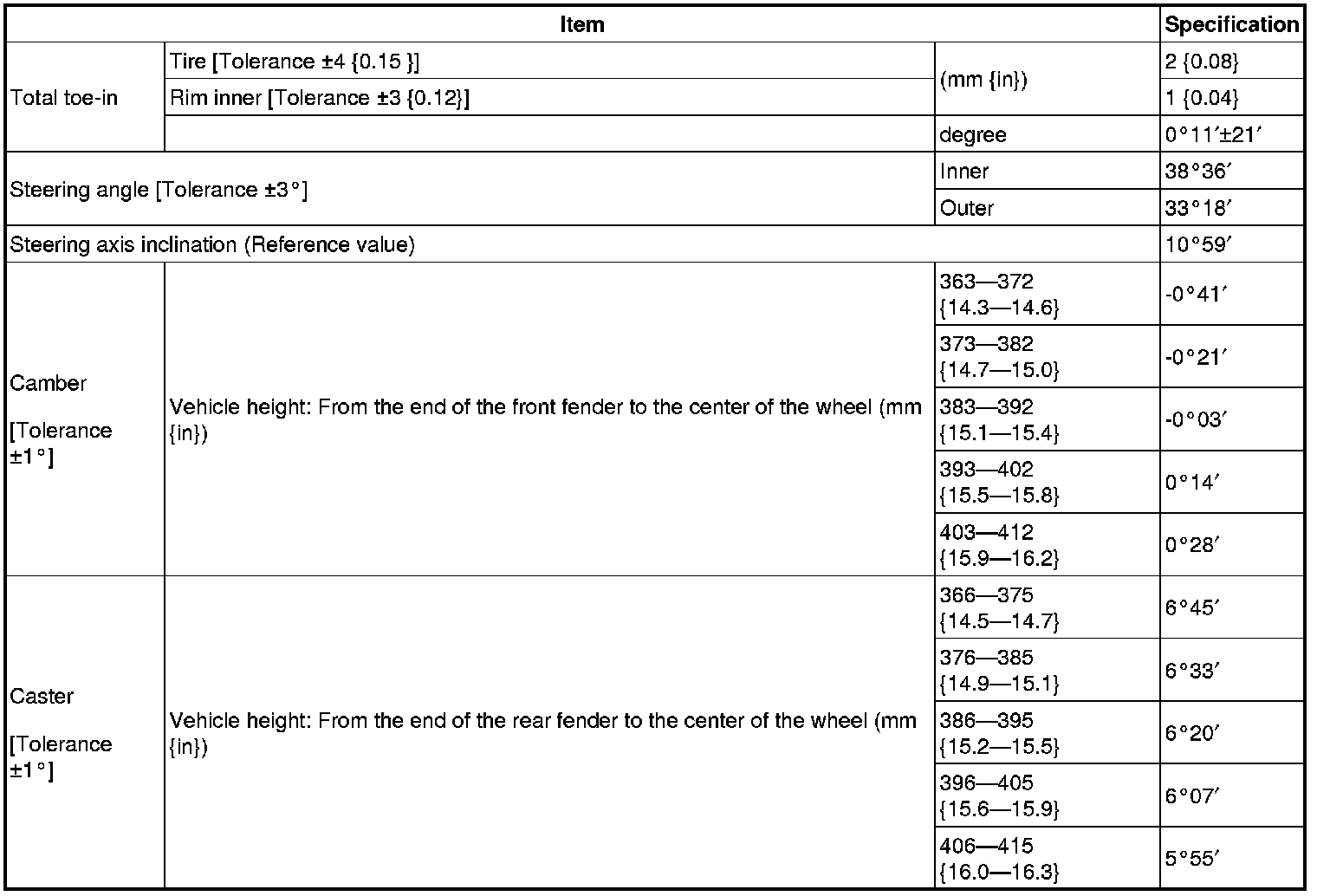

Front wheel alignment [Sport suspension]





NOTE:
- Unloaded vehicle: Fuel tank is full. Engine coolant and engine oil are at specified level. Jack and tools are in designated position.
- Difference between the left and right dimension for camber and caster is within 1°.

REAR WHEEL ALIGNMENT

Specification (Unloaded Condition)

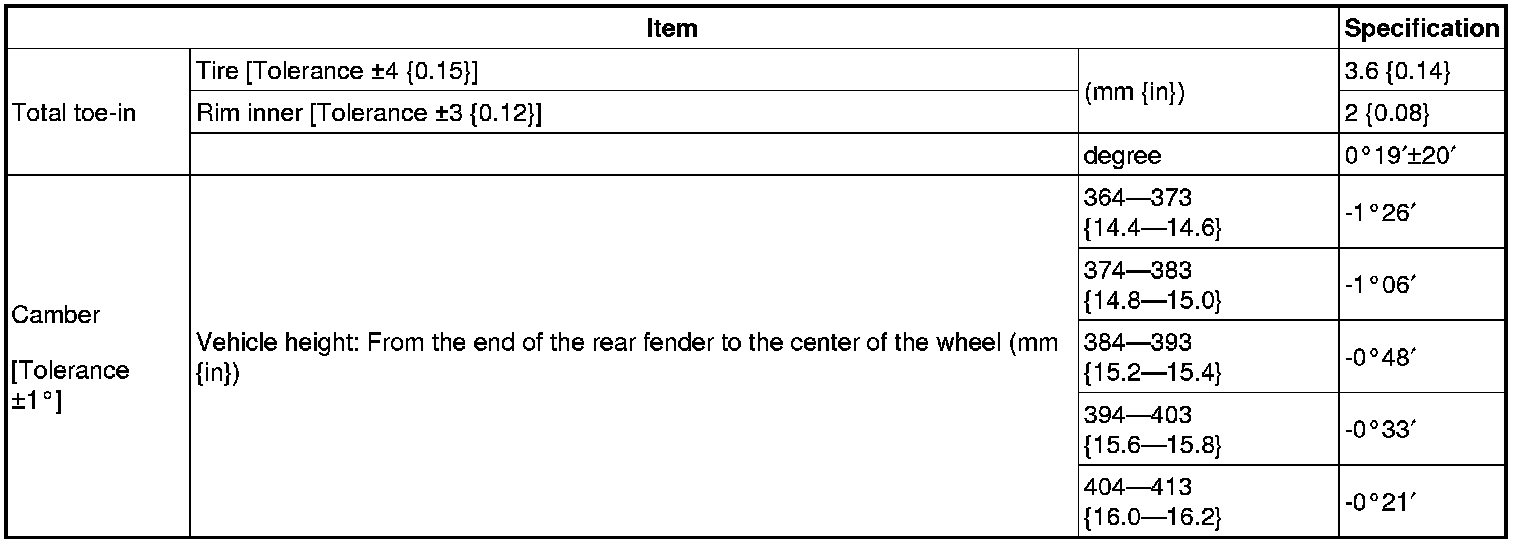

Rear wheel alignment [Standard suspension]





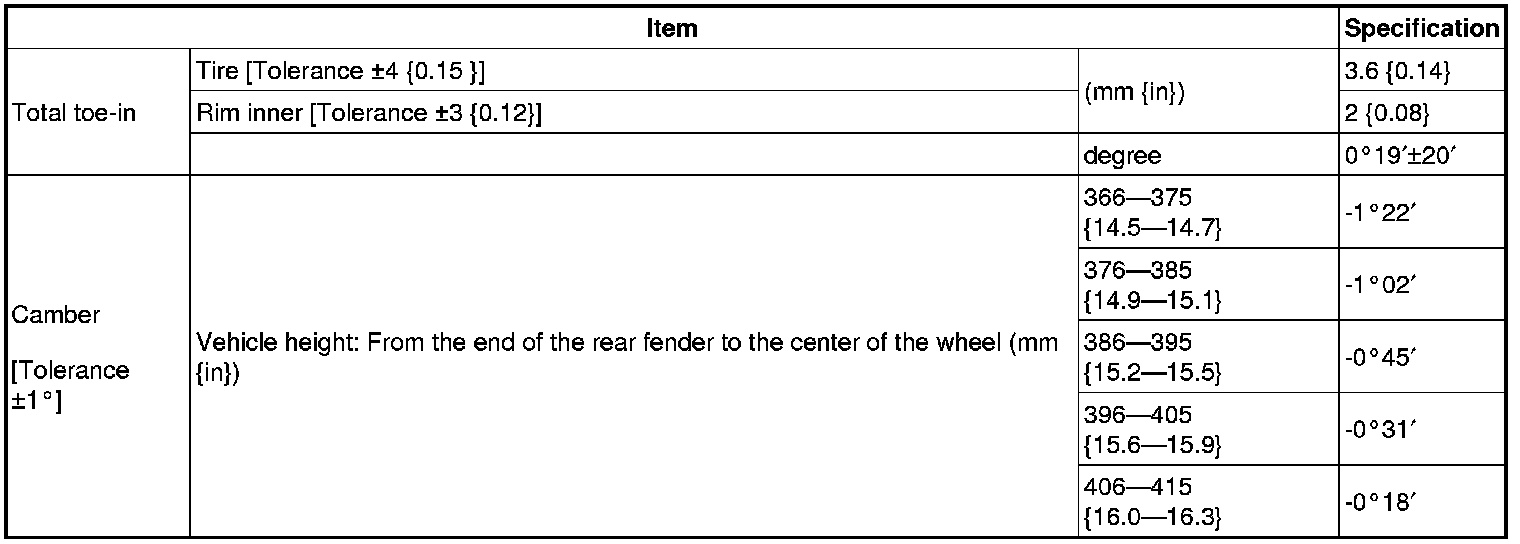

Rear wheel alignment [Sport suspension]





NOTE:
- Unloaded vehicle: Fuel tank is full. Engine coolant and engine oil are at specified level. Jack and tools are in designated position.
- Difference between the left and right camber angle is within 1°.

Ride Height

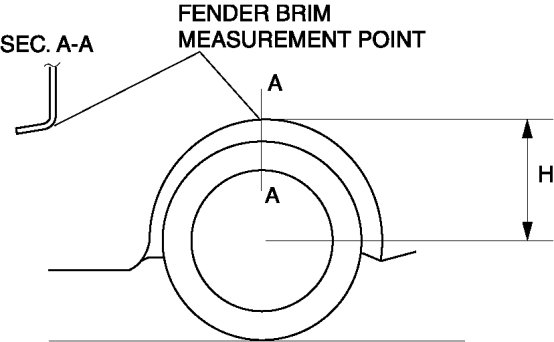

Measure height H from the center of the wheel to the fender brim.






Verify that the difference between the left and right dimension H is within the specification.

Standard 10 mm {0.39 in} or less
