Engine Technical Data

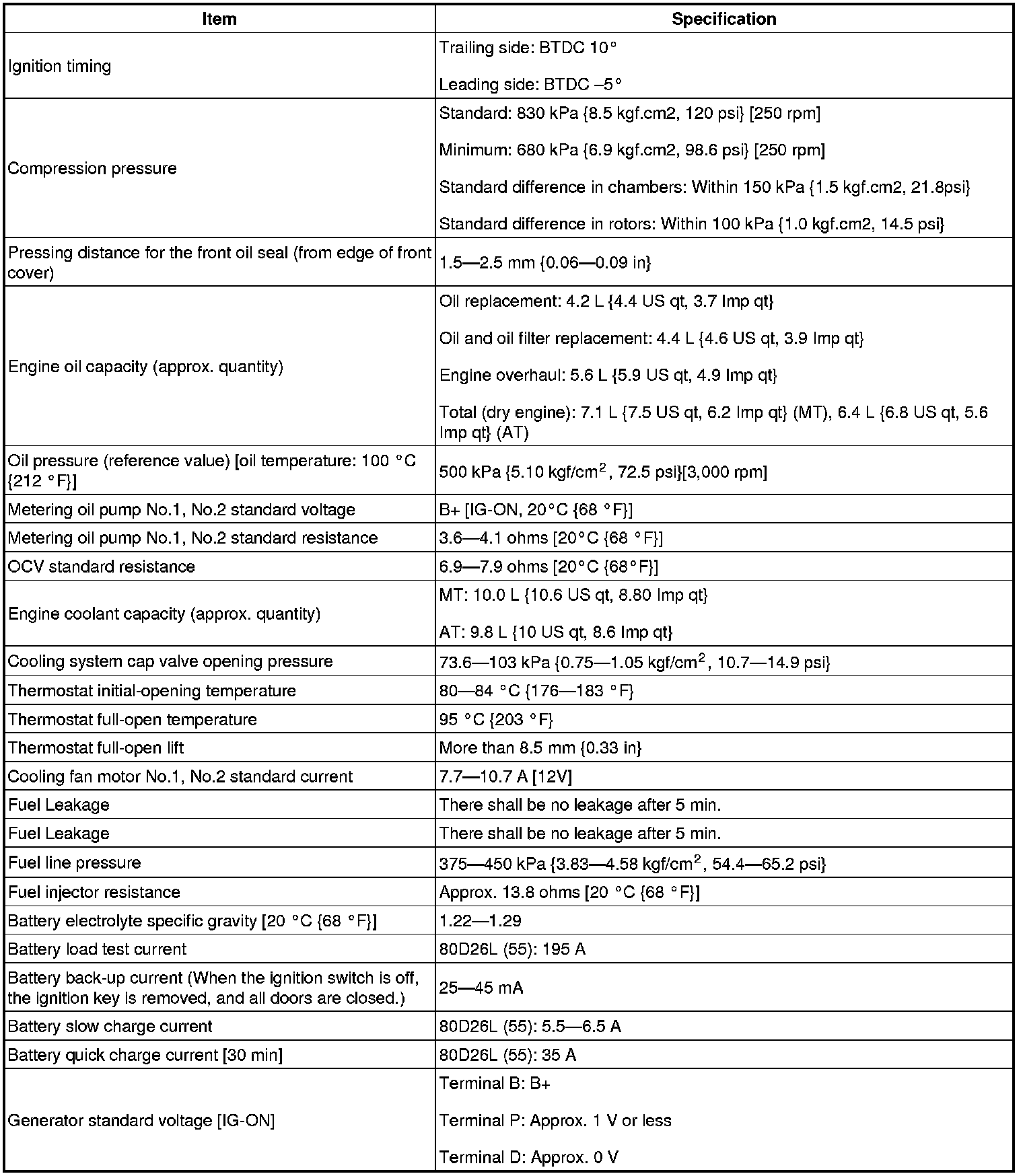

ENGINE TECHNICAL DATA [13B-MSP]









*1
Standard equipment
*2
Hot type plug: Available only for customers who often drive their car at very low speed which causes the plugs to foul easily.

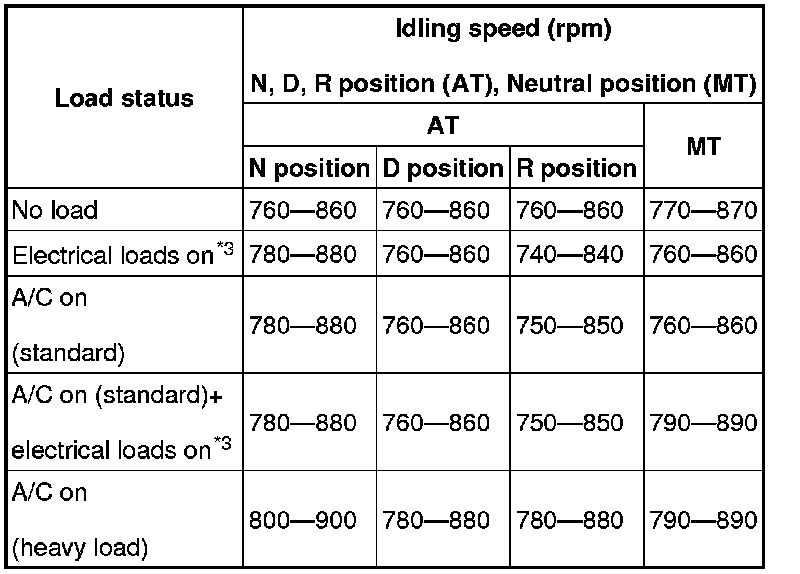

Idle speed





*3
The headlight, rear window defroster, blower fan (2-step or more) are on.

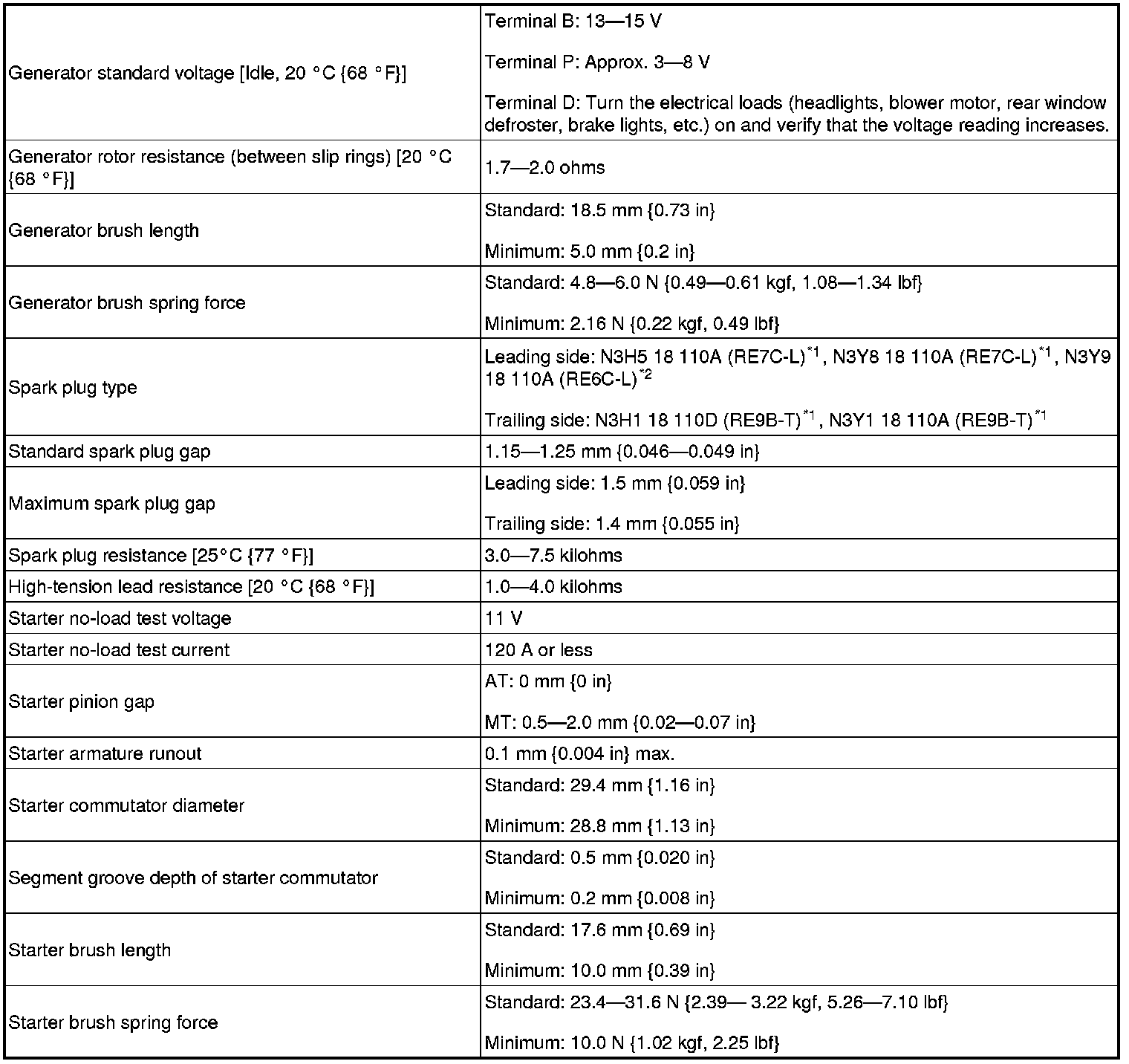

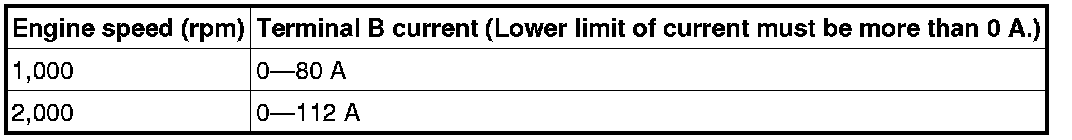

Generator generated current (reference value) [Conditions] Ambient temperature: 20 °C {68 °F}, Voltage: 13-15 V, Engine hot

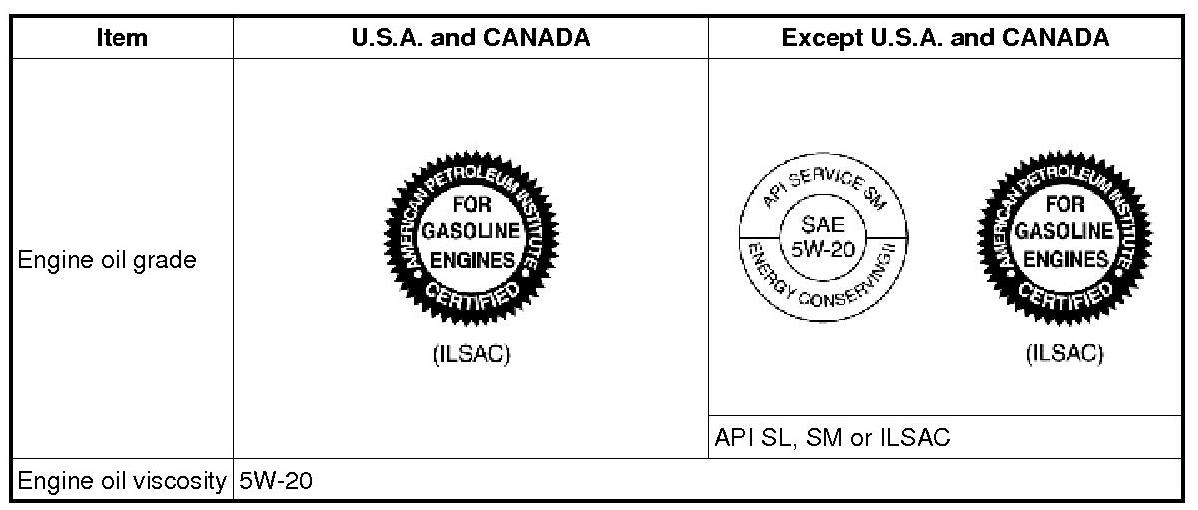

Engine oil specification
