Power Window Subswitch Inspection

POWER WINDOW SUBSWITCH INSPECTION

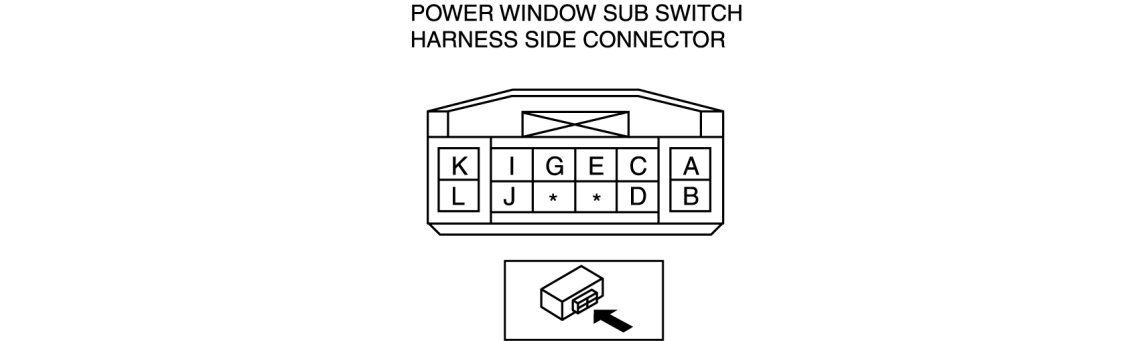

1. Measure the voltage at each terminal is as indicated in the Terminal Voltage Tables.

- If the voltage is not as specified in the terminal voltage table, inspect the parts under "Inspection item (s)".

- If the system does not work properly even though the parts or related wiring harnesses do not have any malfunction, replace the power window sub switch.

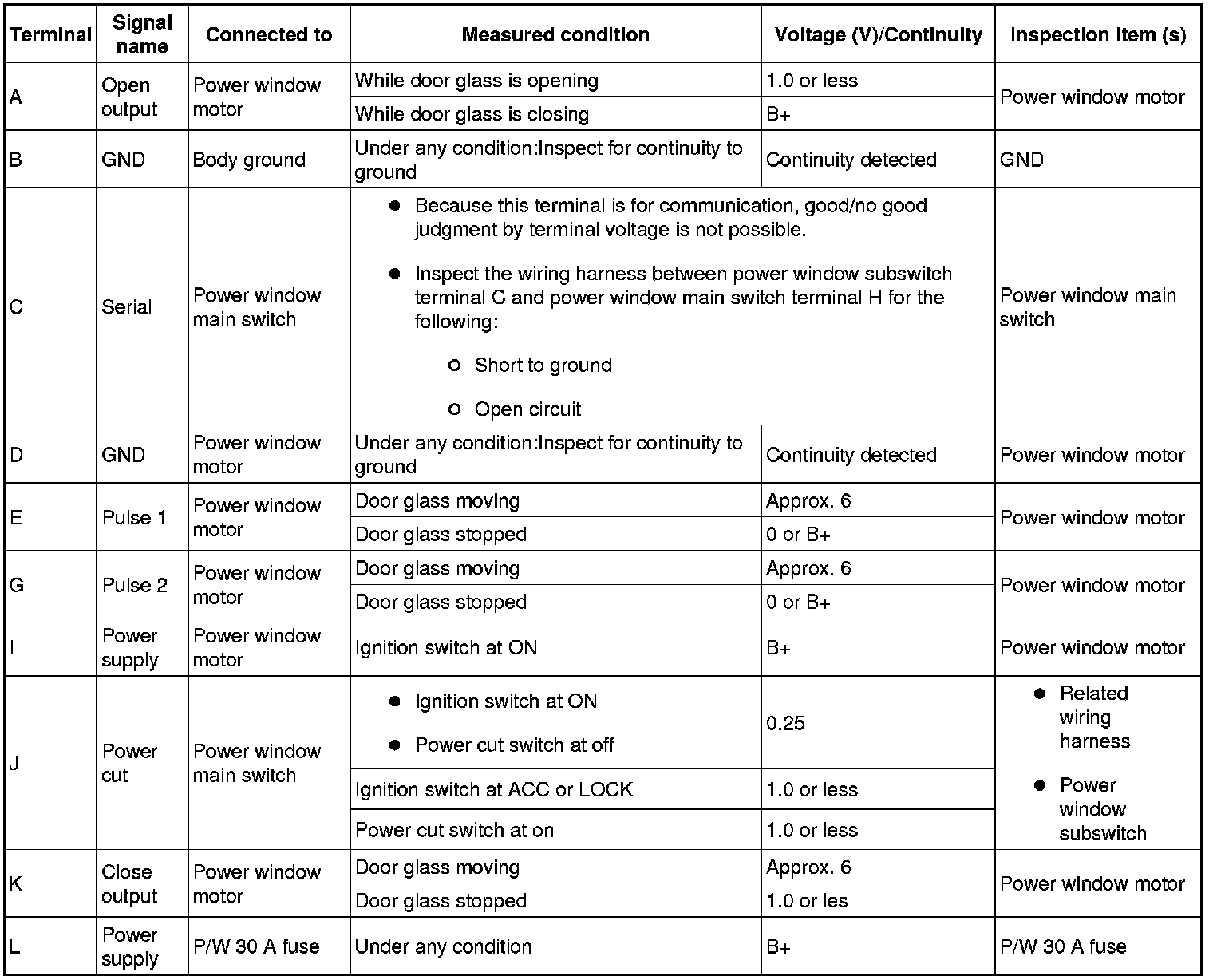

Terminal Voltage Table(Reference)









2. Turn the ignition switch to ON position, and verify the LED illuminates.

- If not as specified, replace the power window subswitch.
