Pinpoint Test 14: DTC B1137 - Data Not Programmed

PINPOINT TEST 14: DTC B1137 - DATA NOT PROGRAMMED

Normal Operation

When an integrated keyhead transmitter (IKT) key is programmed, the remote keyless entry (RKE) transmitter identification code (TIC) data from the key is received by the instrument cluster (IC). The IC then sends the TIC data to the smart junction box (SJB) over the medium speed controller area network (MS-CAN). The SJB stores the TIC data in memory and sends an acknowledgement back to the IC that the TIC data was successfully programmed.

- DTC B1137 (Data Not Programmed) - a continuous DTC that sets when the IC sends the RKE TIC data to the SJB over the MS-CAN, and it does not receive a response from the SJB that the TIC data has been stored.

Possible Causes
- IKT programming
- MS-CAN network
- SJB

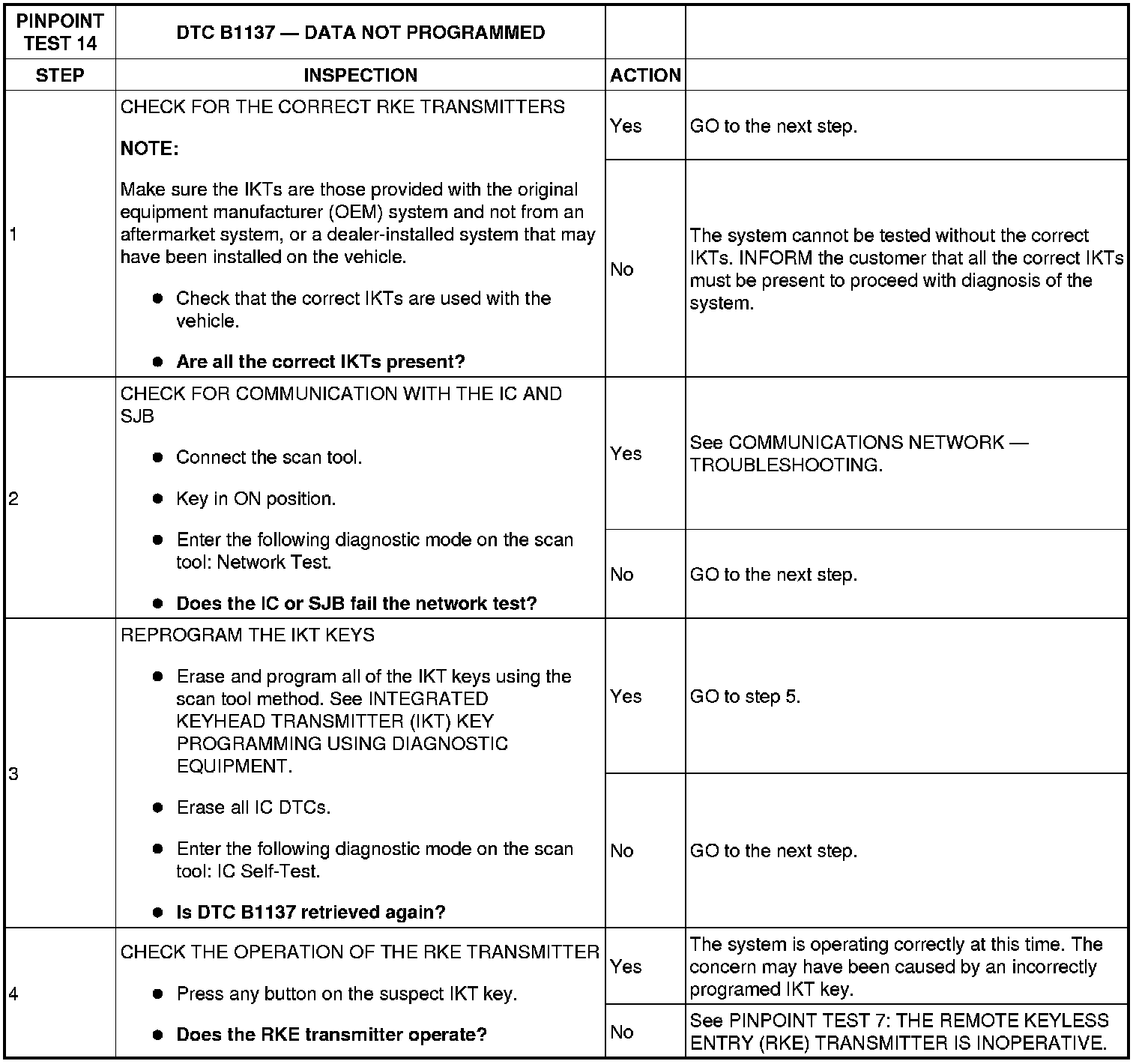

Diagnostic Procedure
