Automatic Transmission/Transaxle

TRANSAXLE CONNECTOR LAYOUTS

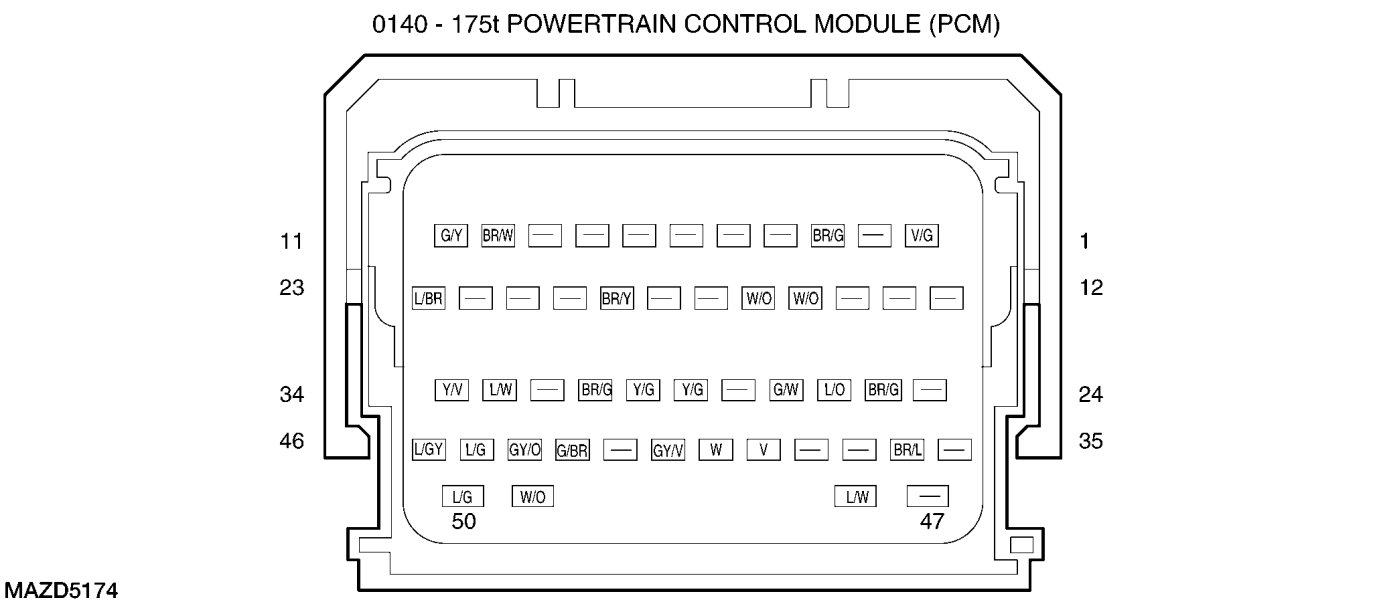

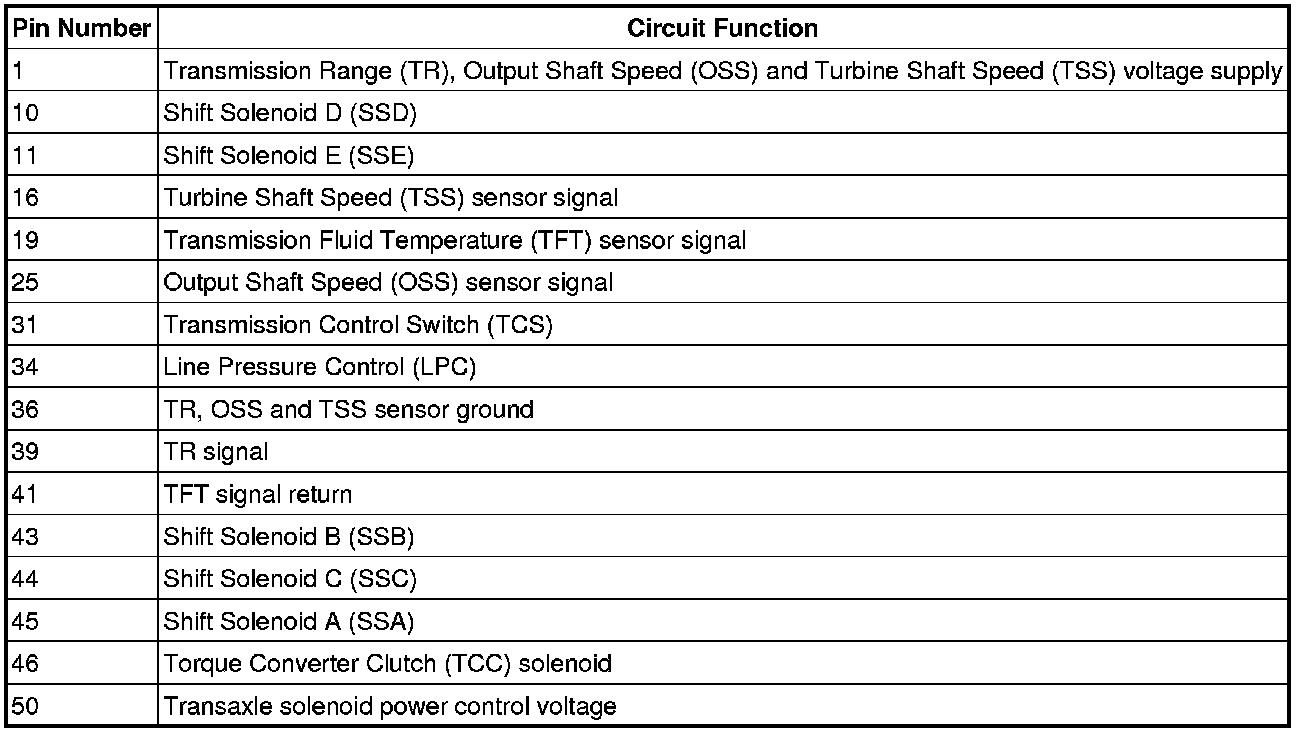

PCM Transaxle Harness - 0140-175T

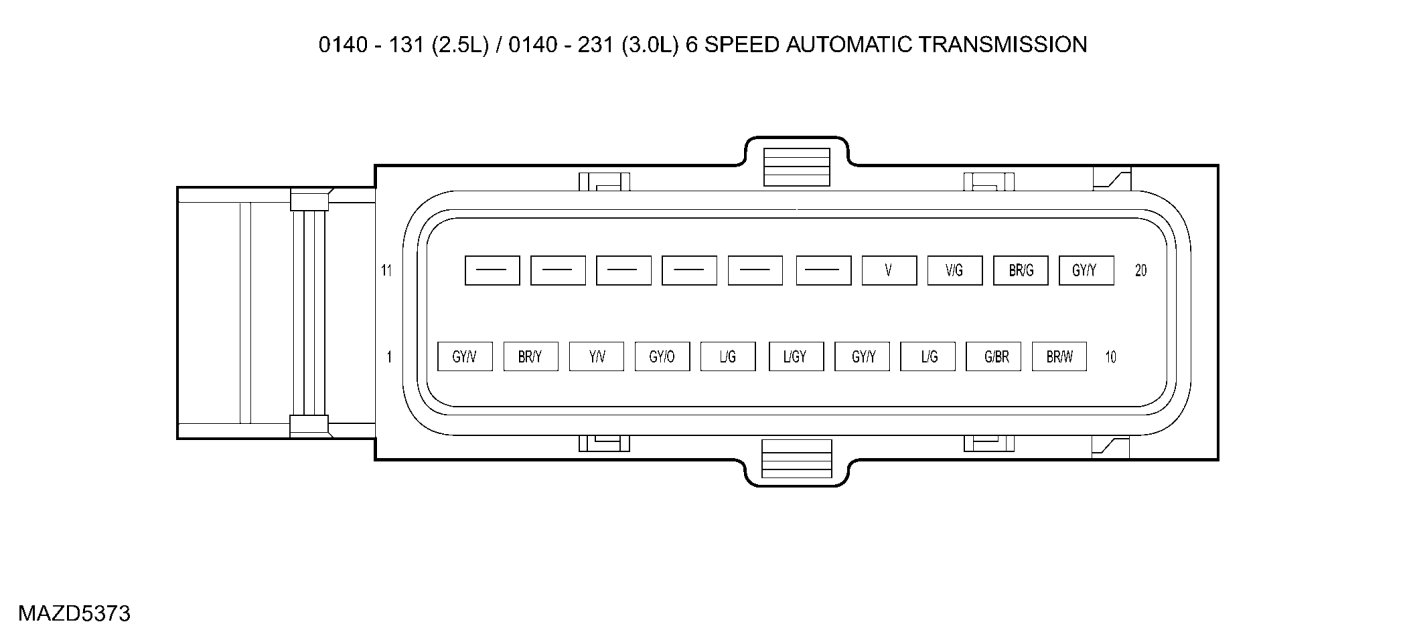

Transaxle Vehicle Harness - 0140-131 (2.5L), 0140-231 (3.0L)

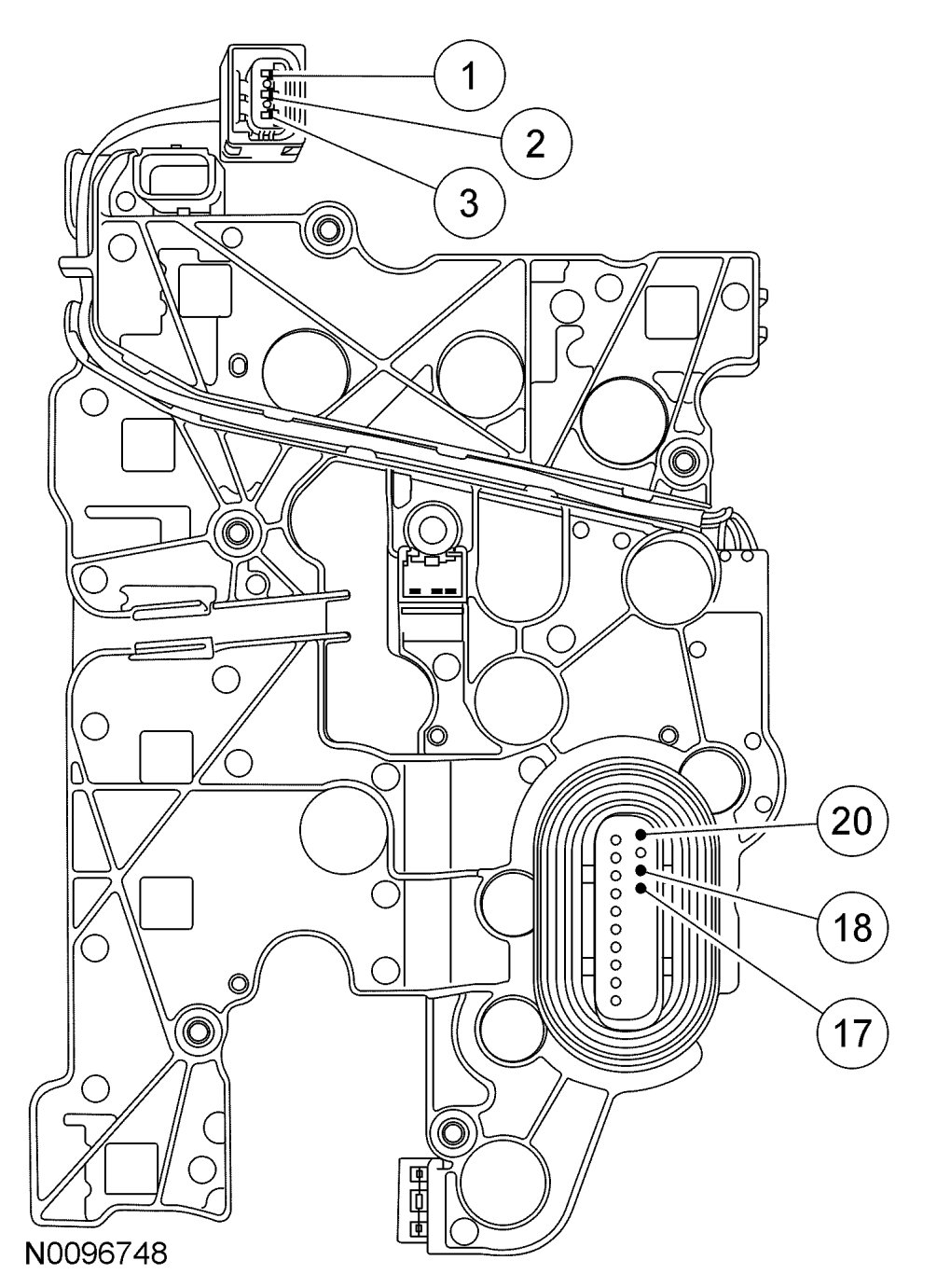

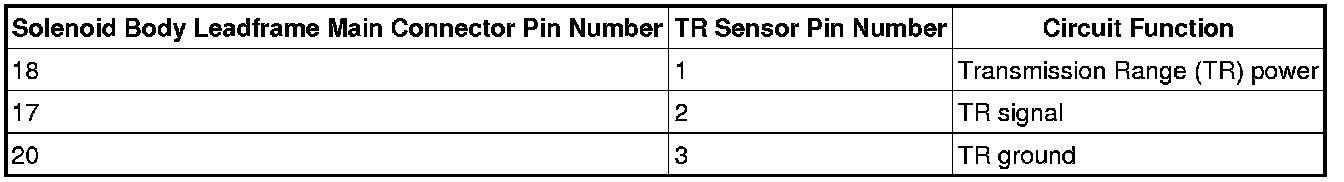

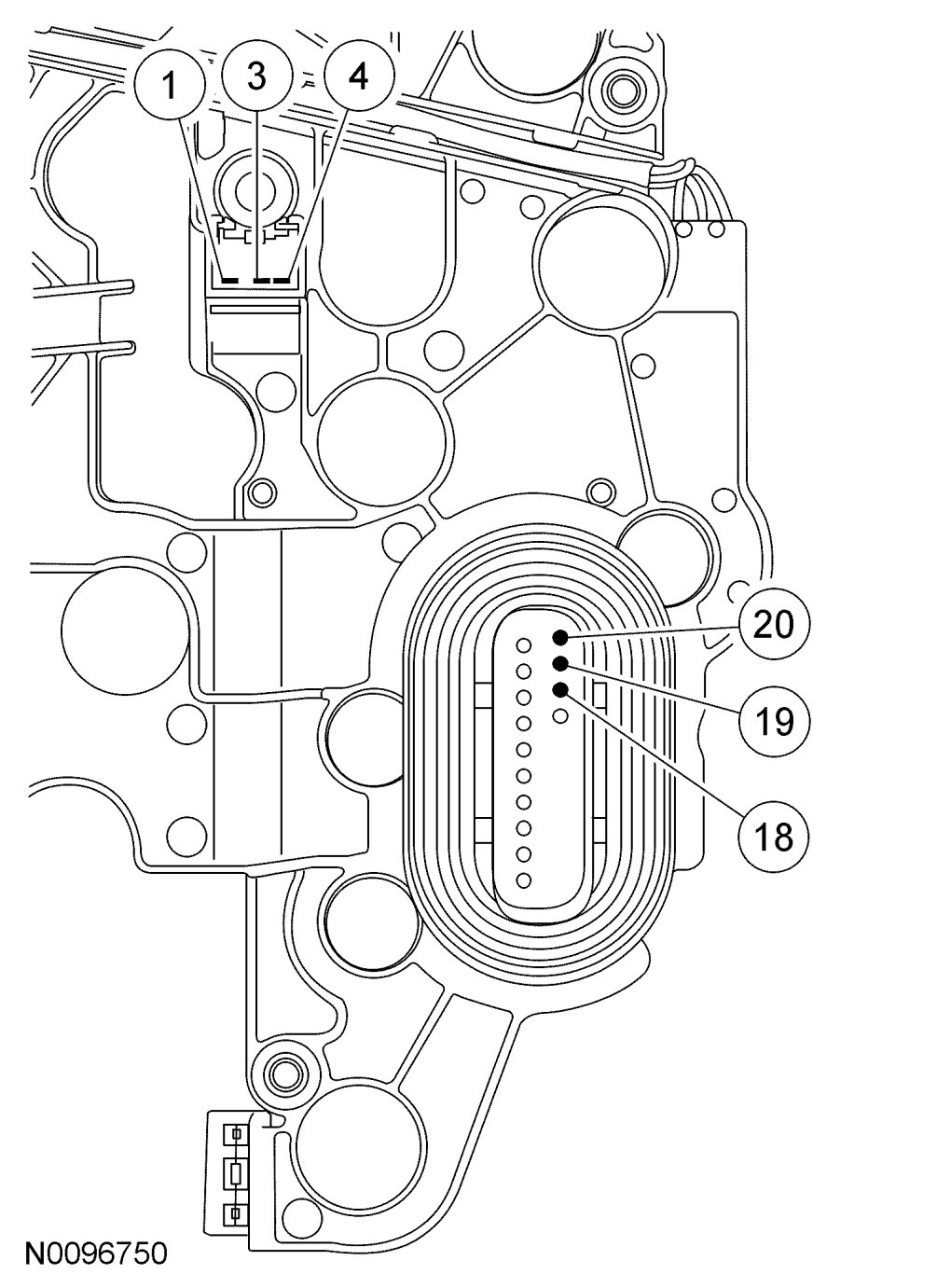

Solenoid Body Leadframe-to-Transmission Range (TR) Sensor Internal Circuit Diagram

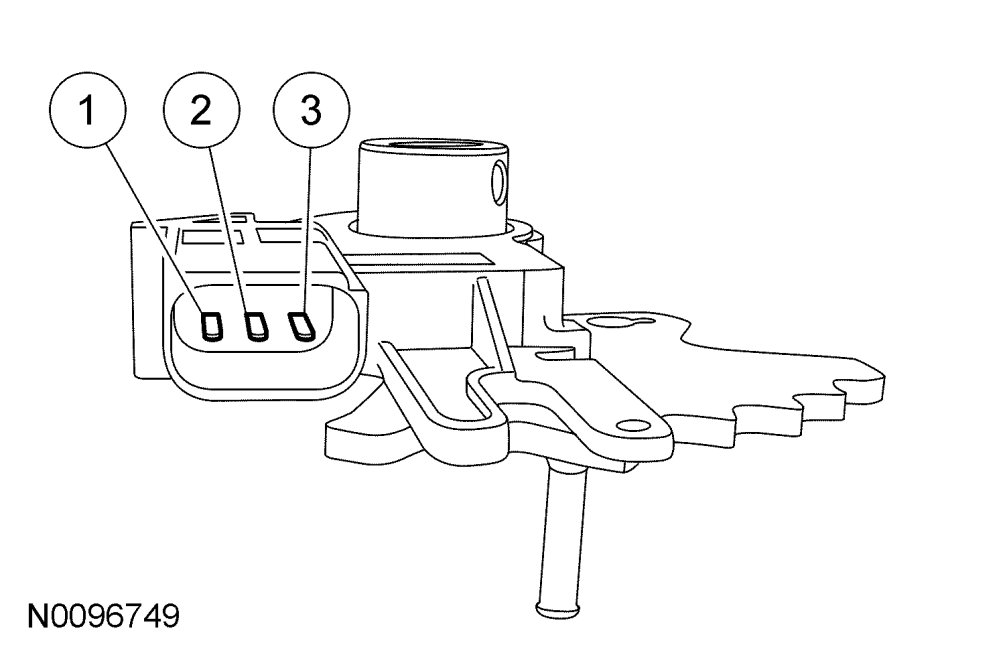

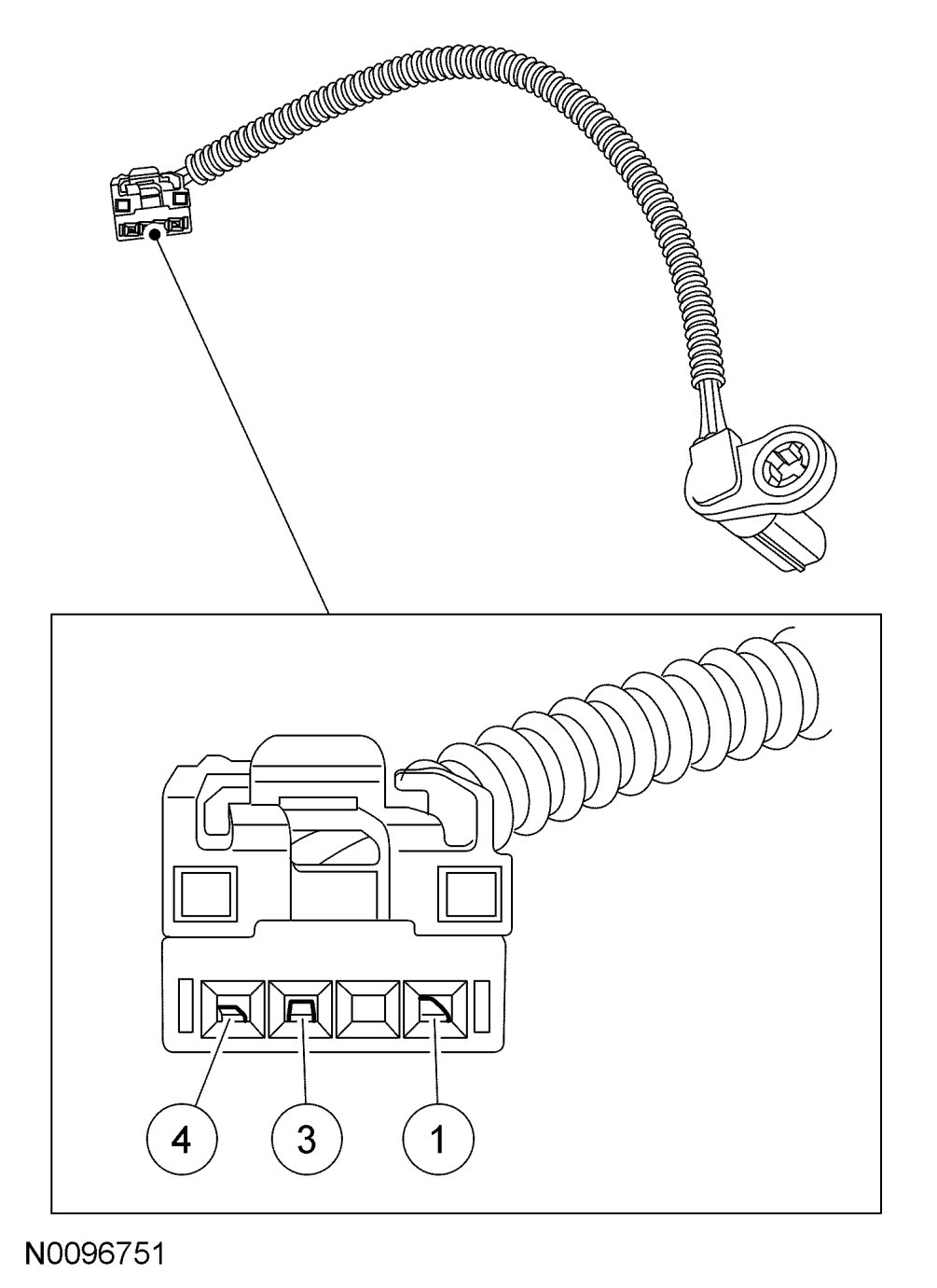

Transmission Range (TR) Sensor

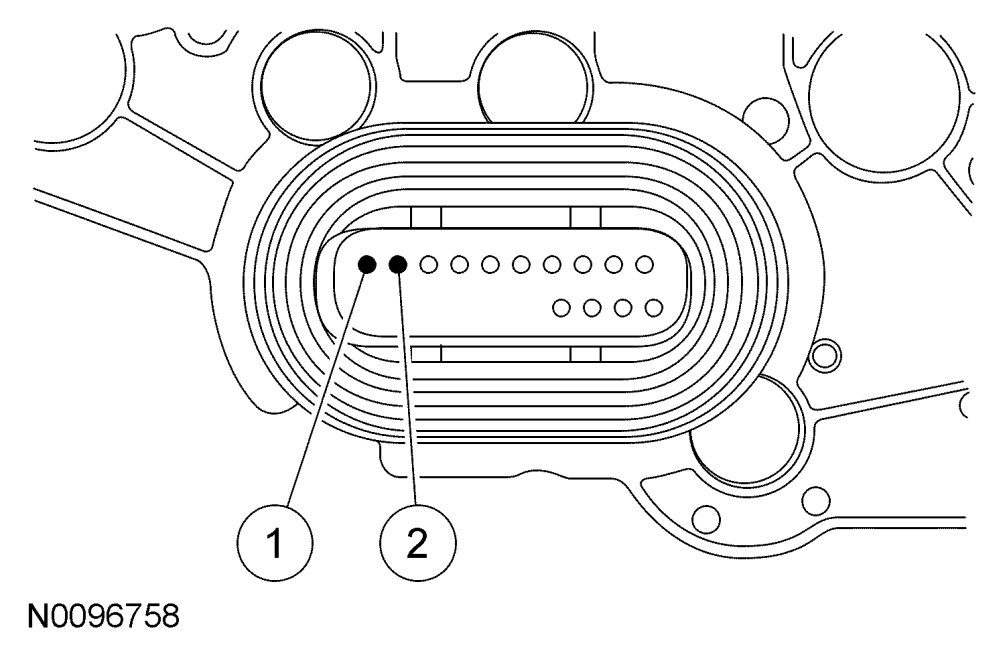

Solenoid Body Leadframe Transmission Fluid Temperature (TFT) Sensor Pins

Solenoid Body Leadframe-to-Output Shaft Speed (OSS) Sensor Internal Circuit Diagram

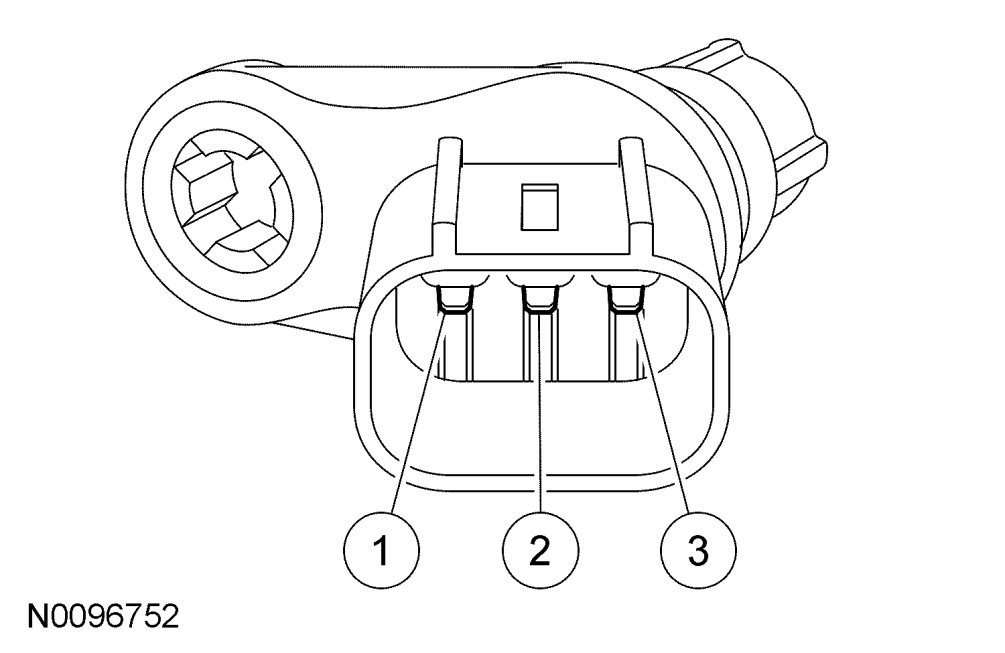

Output Shaft Speed (OSS) Sensor

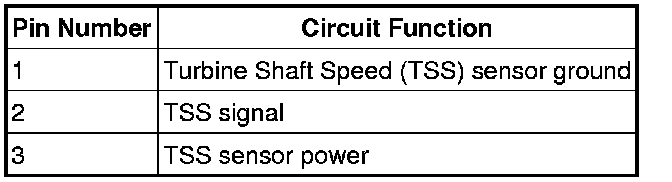

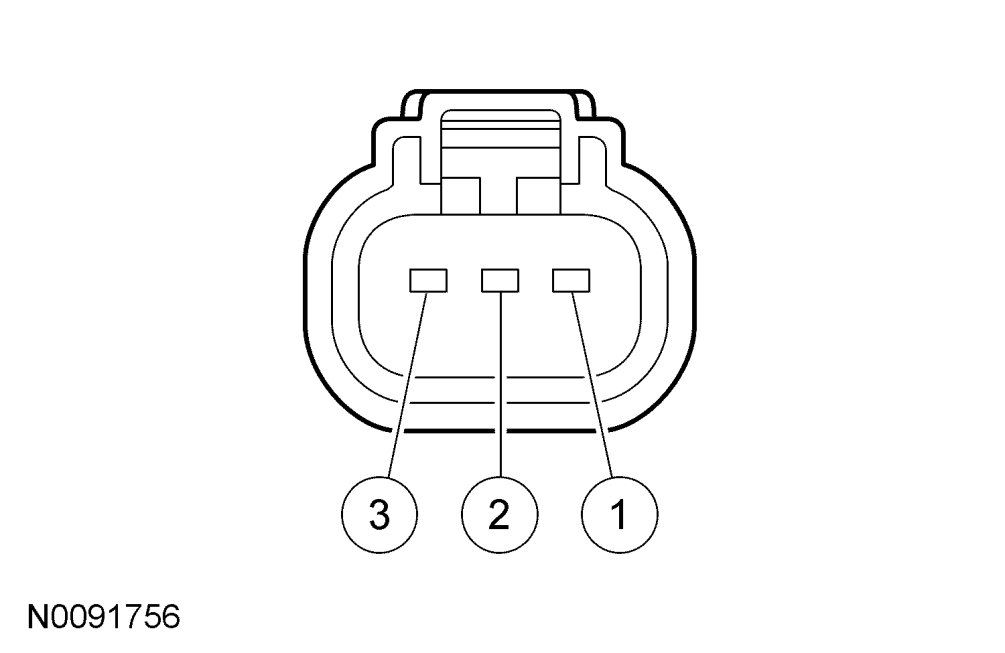

Turbine Shaft Speed (TSS) Sensor

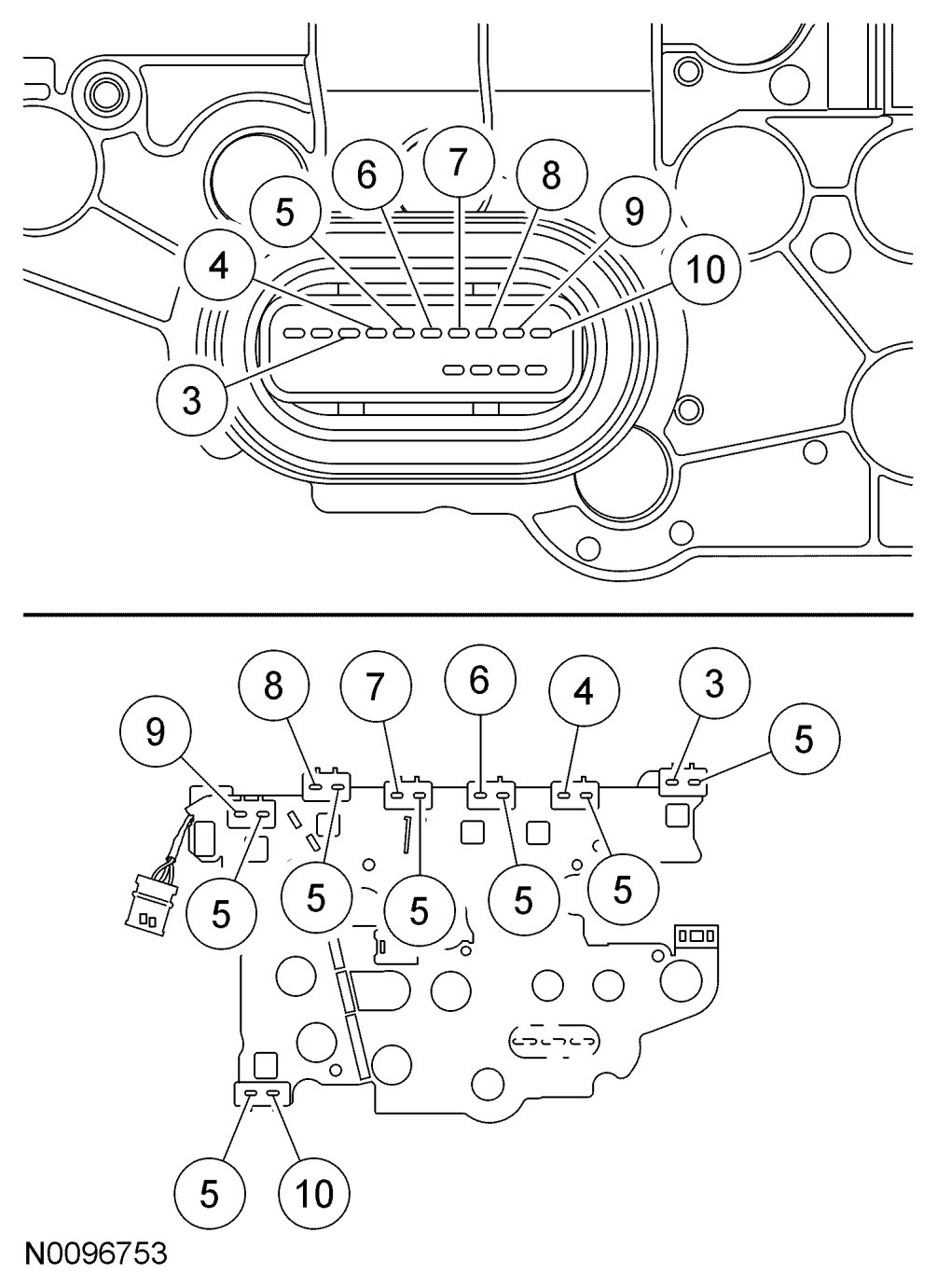

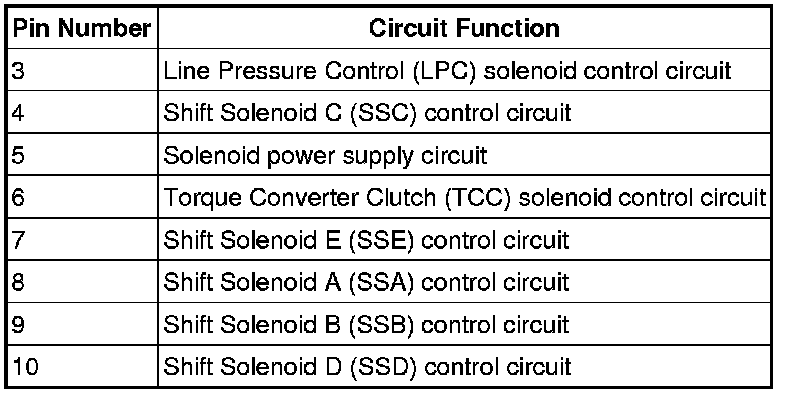

Solenoid Body Leadframe-to-Solenoid Internal Circuit Diagram
