Lower End Components Exploded View

LOWER END COMPONENTS EXPLODED VIEW - 2.5L

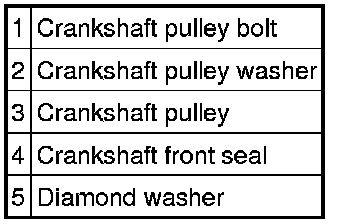

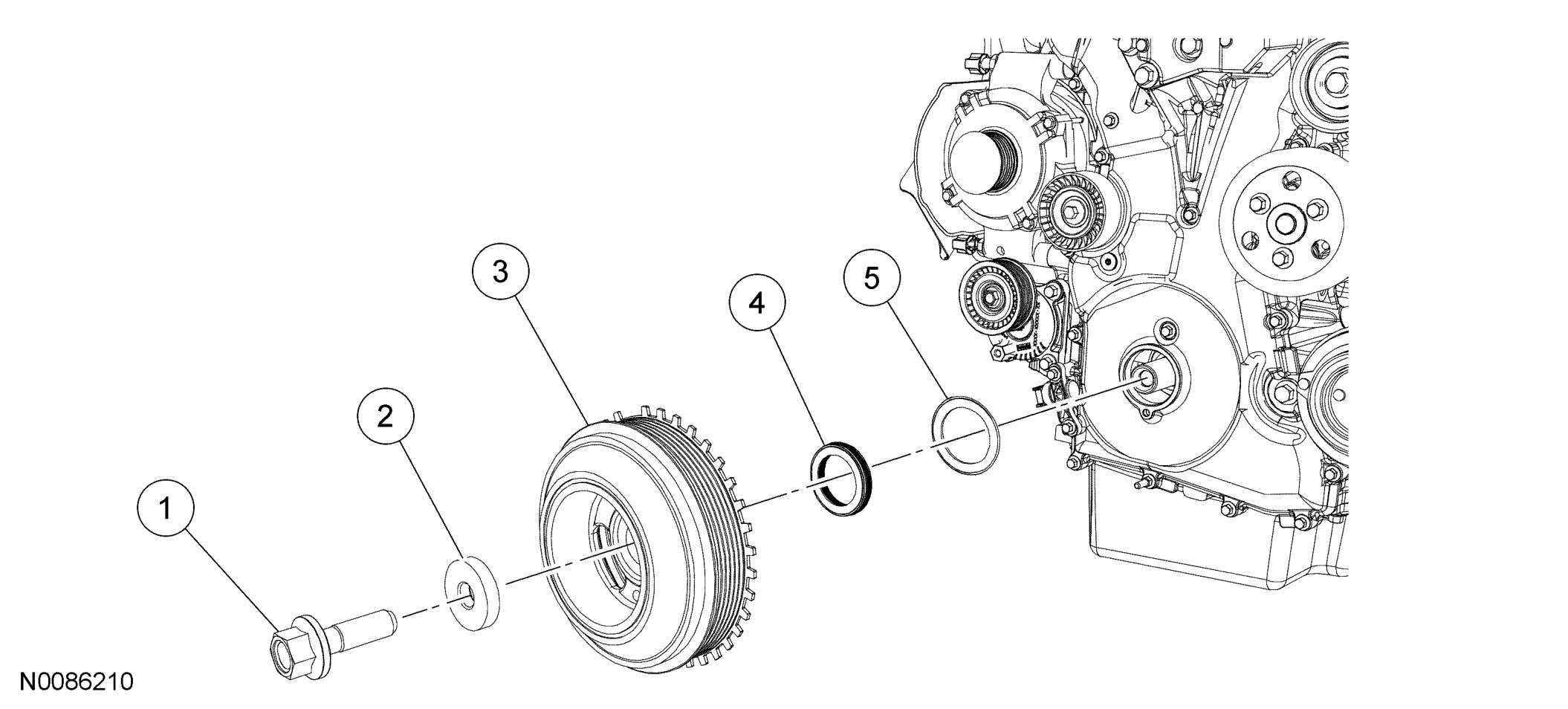

Crankshaft Pulley and Crankshaft Front Oil Seal

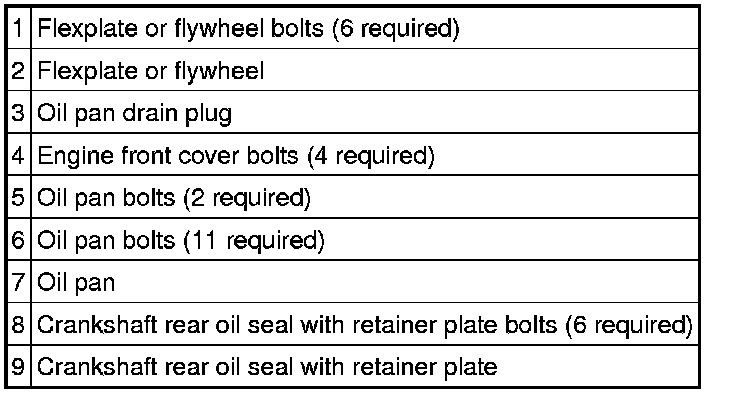

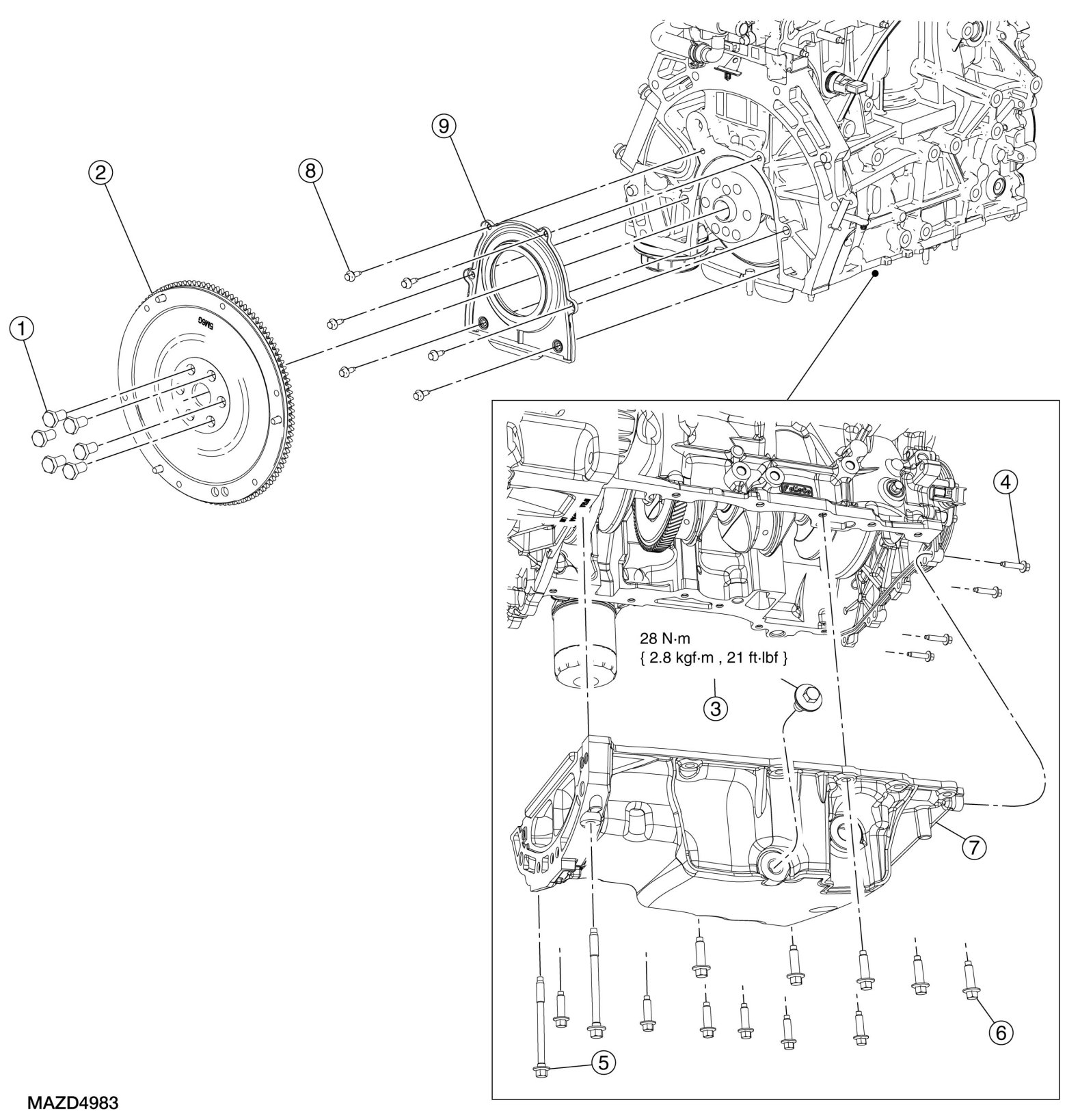

Flexplate, Flywheel and Crankshaft Rear Oil Seal










1. For additional information, see the procedures.
