Trunk / Liftgate

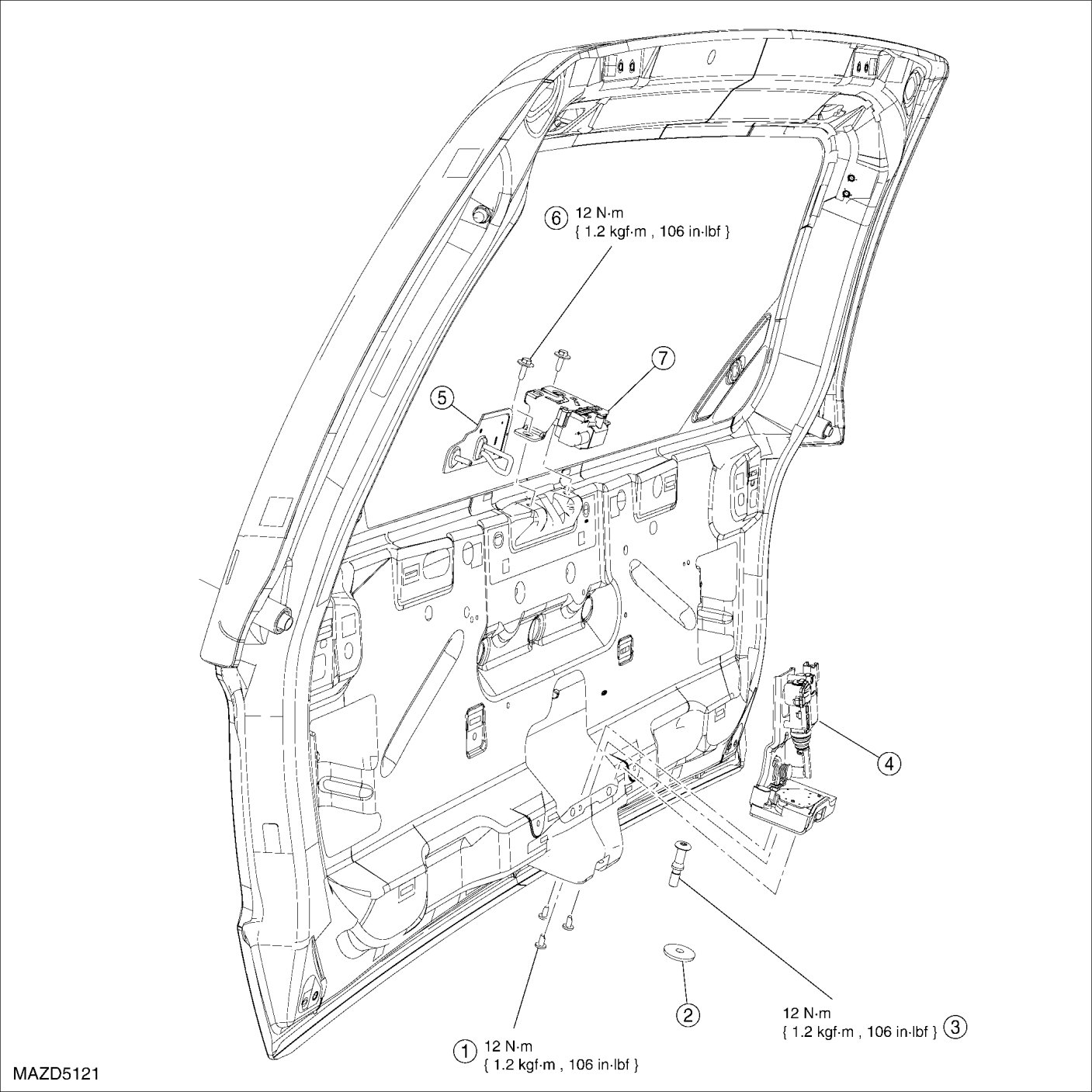

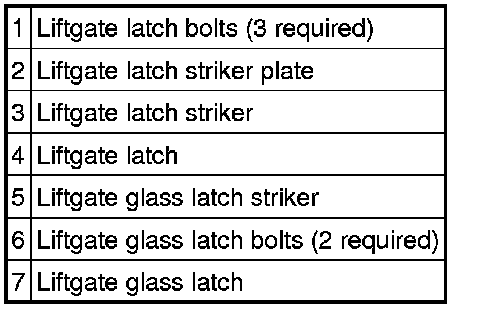

LIFTGATE HANDLE, LOCK AND LATCH - EXPLODED VIEW









1. For additional information, see the procedures.
