Heating and Air Conditioning: Specifications

SPECIFICATIONS

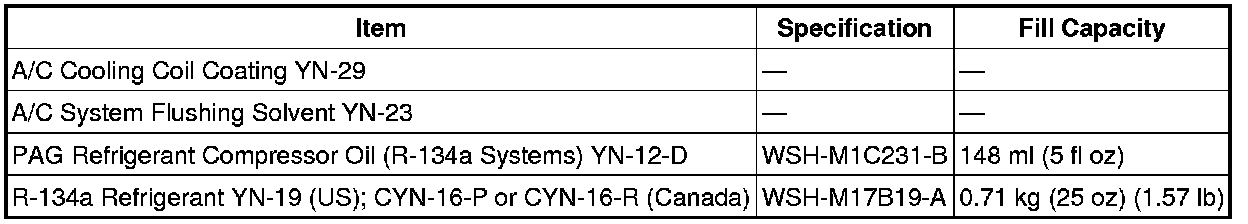

Material Specifications - Conventional





General Specifications - Conventional

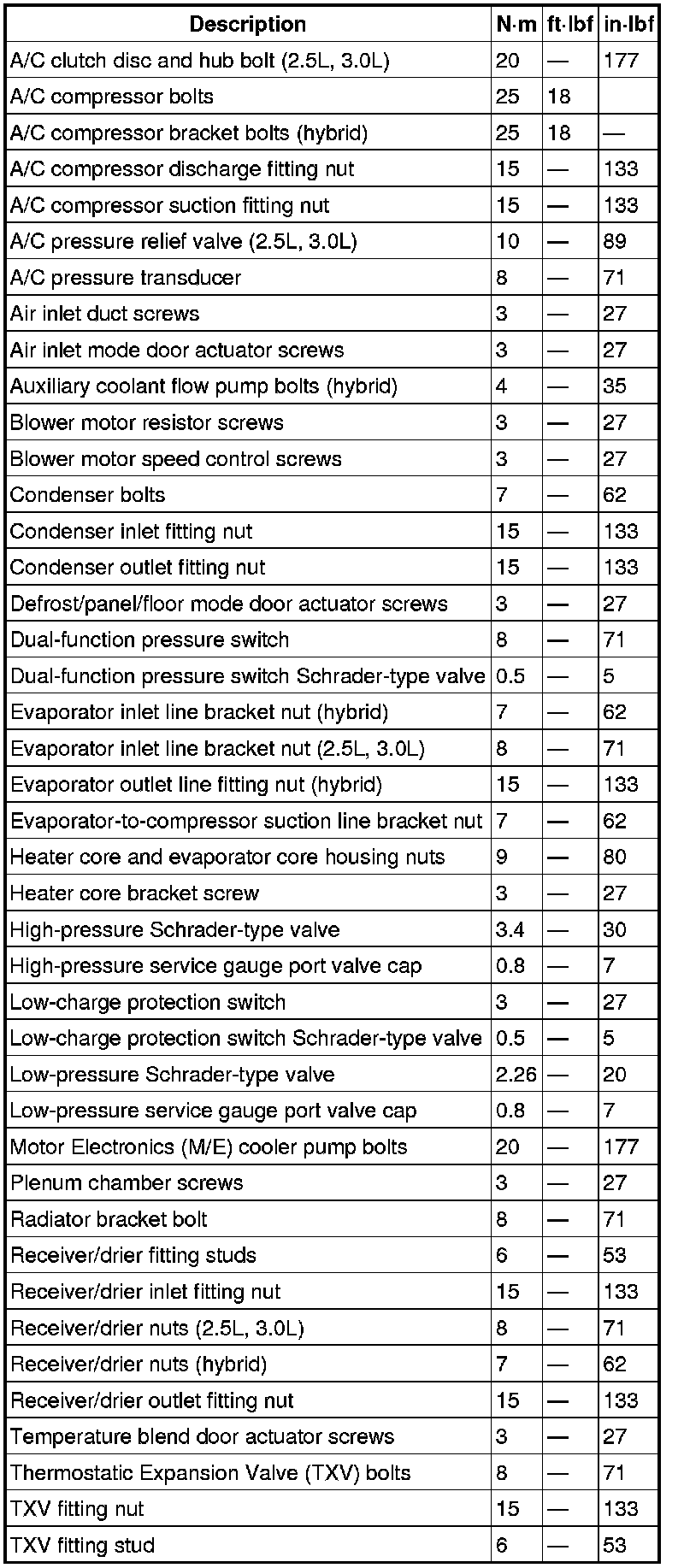

Torque Specifications





Material Specifications - Hybrid





General Specifications - Hybrid





a Manifold gauge set pressures may vary slightly depending on the distance between the service gauge port valve and the A/C pressure relief valve, the A/C cycling switch or the pressure cutoff switch location.
