Air Flow Meter/Sensor: Service and Repair

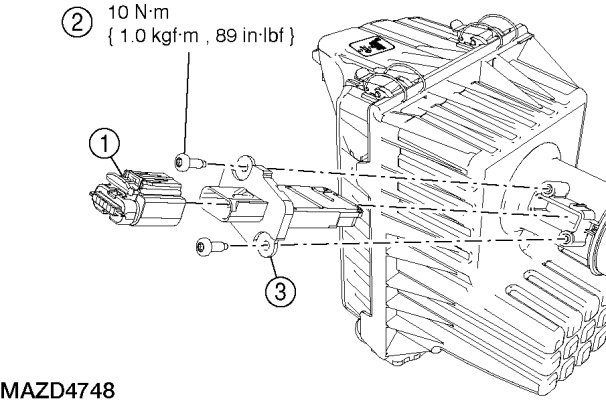

MASS AIR FLOW (MAF) SENSOR REMOVAL/INSTALLATION - 2.5L

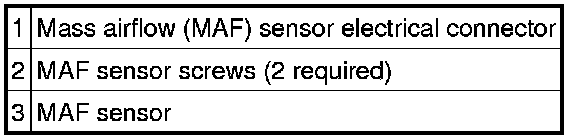

1. Disconnect the mass air flow (MAF) sensor electrical connector.

2. Remove the 2 screws and the MAF sensor.

- To install, tighten to 10 Nm {1.0 kgf-m, 89 in-lbf}.

3. To install, reverse the removal procedure.
