Engine Temperature Sensor: Service and Repair

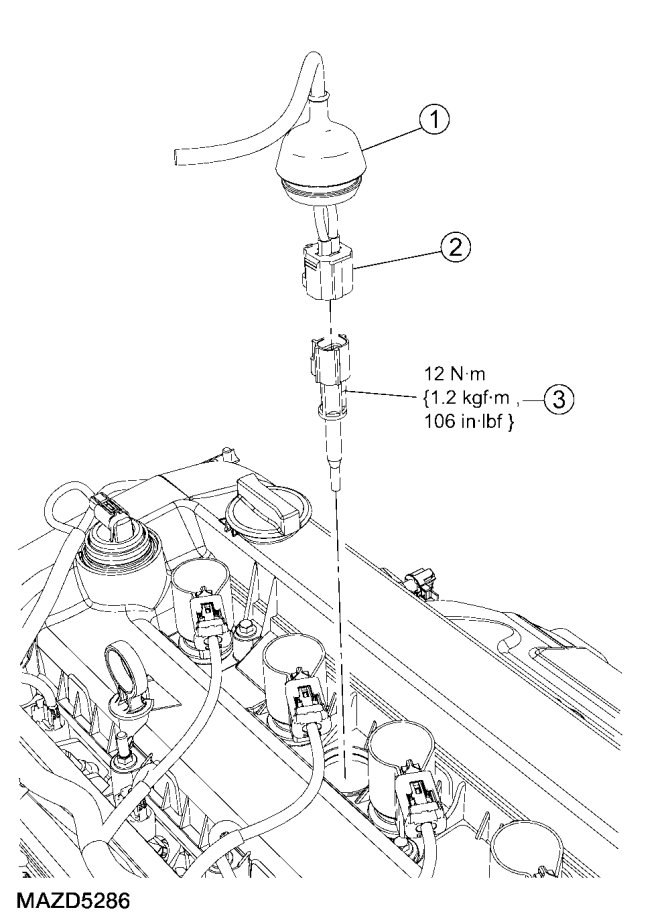

CYLINDER HEAD TEMPERATURE (CHT) SENSOR REMOVAL/INSTALLATION - 2.5L

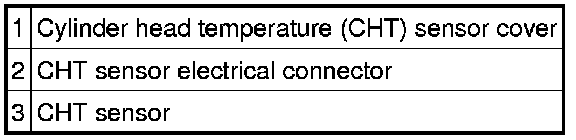

1. Detach the cylinder head temperature (CHT) sensor cover and position aside.

2. Disconnect the CHT sensor electrical connector.

3. Remove the CHT sensor.

- To install, tighten to 12 Nm {1.2 kgf-m, 106 in-lbf}.

4. To install, reverse the removal procedure.
