Knock Sensor: Service and Repair

KNOCK SENSOR (KS) REMOVAL/INSTALLATION - 2.5L









1. With the vehicle in NEUTRAL, position it on a hoist.See Lifting.

2. Remove the intake manifold. See - Service and Repair.

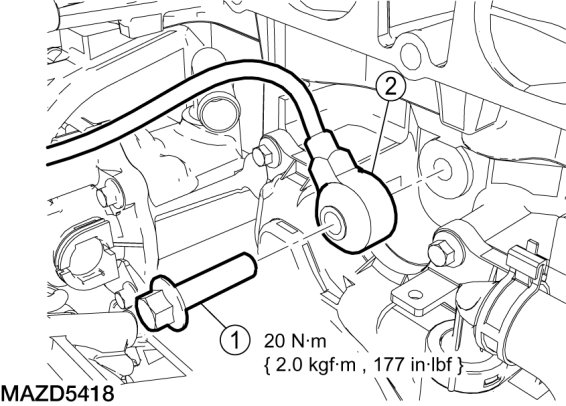

3. Remove the bolt and the knock sensor (KS).

- To install, tighten to 20 Nm {2.0 kgf-m, 177 in-lbf}.

4. To install, reverse the removal procedure.
